| Components |

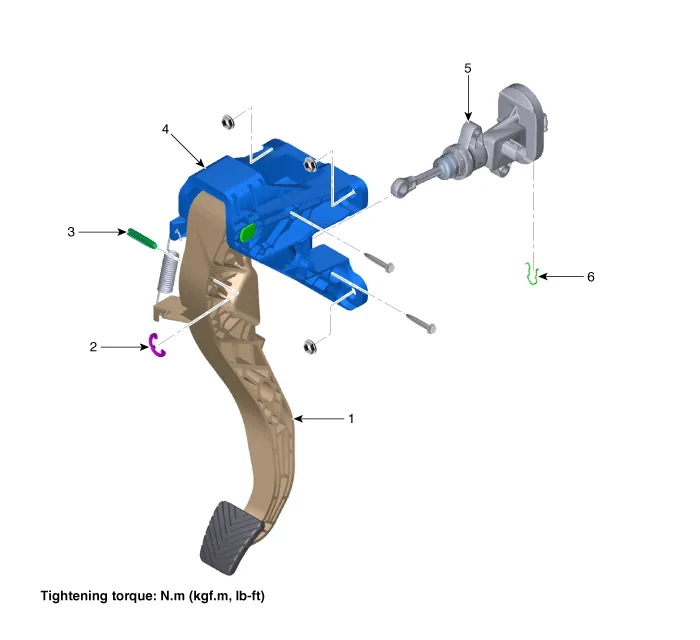

| 1. Clutch pedal arm 2. Clip 3. Push rod pin | 4. Clutch pedal assembly 5. Clutch master cylinder 6. Clip |
| Removal |
| 1. | Remove the clutch pedal. (Refer to Clutch System - "Clutch Pedal") |

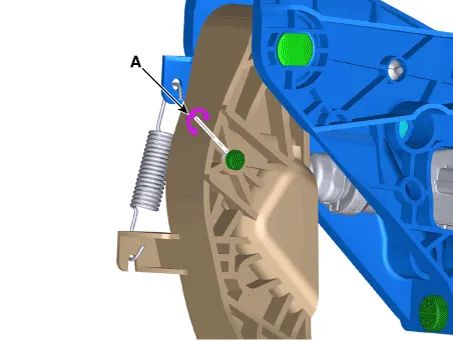

| 2. | Remove the clip (A).
|
| 3. | Remove the push rod pin (A) by pushing it in the “F” direction.
|

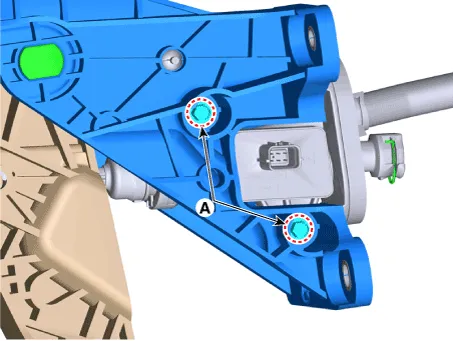

| 4. | Loosen the bolts (A) and then removing the clutch master cylinder (B).
|
| Installation |
| 1. | To install, reverse the removal procedures. |
| 2. | Perform bleeding air procedure in concecntric slave cylinder after pouring the brake fluid. (Refer to Clutch System - "Concentric Slave Cylinder Assembly") |
