Hyundai Elantra (CN7): Clutch System / Clutch Pedal

Hyundai Elantra (CN7) 2021-2025 Service Manual / Clutch System / Clutch System / Clutch Pedal

Components and components location

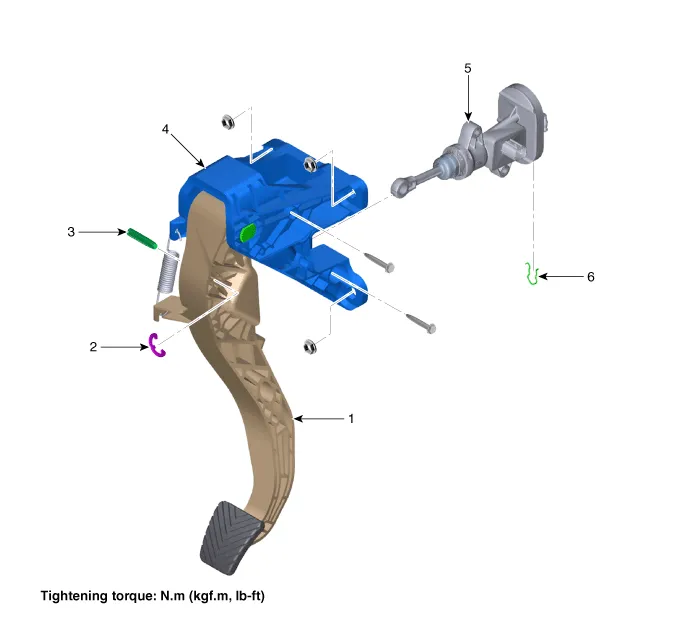

Components

1. Clutch pedal arm
2. Clip
3. Push rod pin
4. Clutch pedal assembly
5. Clutch master cylinder
6. Clip

Repair procedures

Removal
1.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechnical System - "Air Cleaner")
2.
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
3.

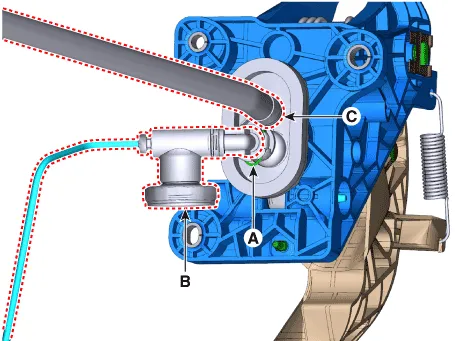

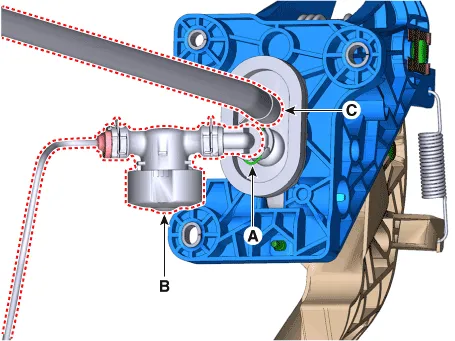

Pull the snap pin (A) and then separate the clutch regulator (B).
[Gasoline 1.6 MPI / Gasoline 2.0 MPI]

[Gasoline 1.6 T-GDI]

4.

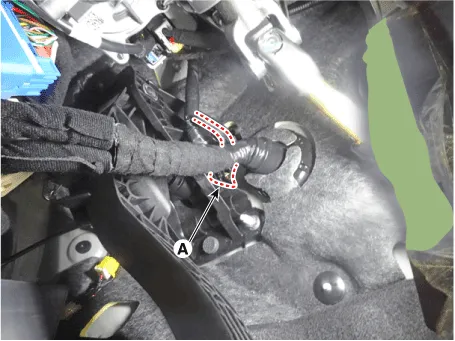

Disconnect the ignition lock & clutch switch connector (A).

5.
Loosen the nuts (A) and then removing the clutch pedal.
Tightening torque :
16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 Ib-ft)

Installation
1.
To install, reverse the removal procedures.
2.
Perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
(Refer to Clutch System - "Concentric Slave Cylinder Assembly")
