Components

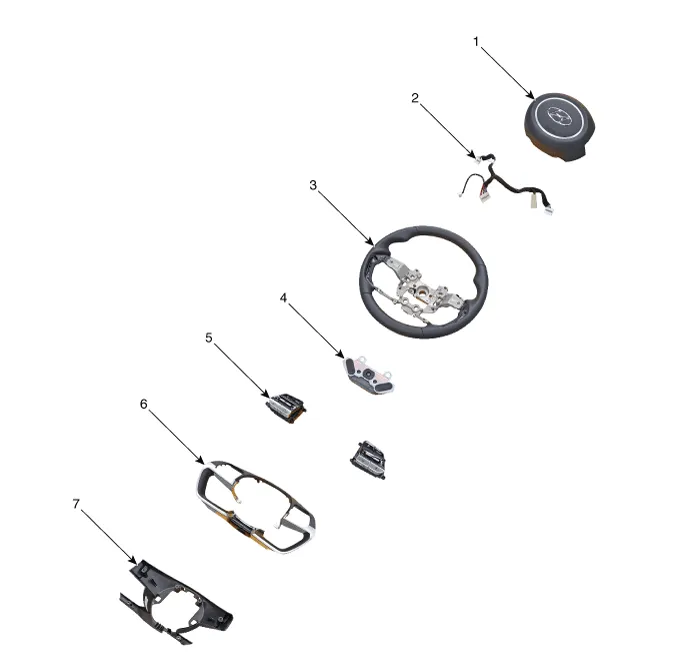

[G 1.6 MPI / LPI]

1. Drive air bag module (DAB)
2. Wiring
3. Steering wheel
4. Damper
5. Remote control switch
6. Switch bezel
7. Lower cover

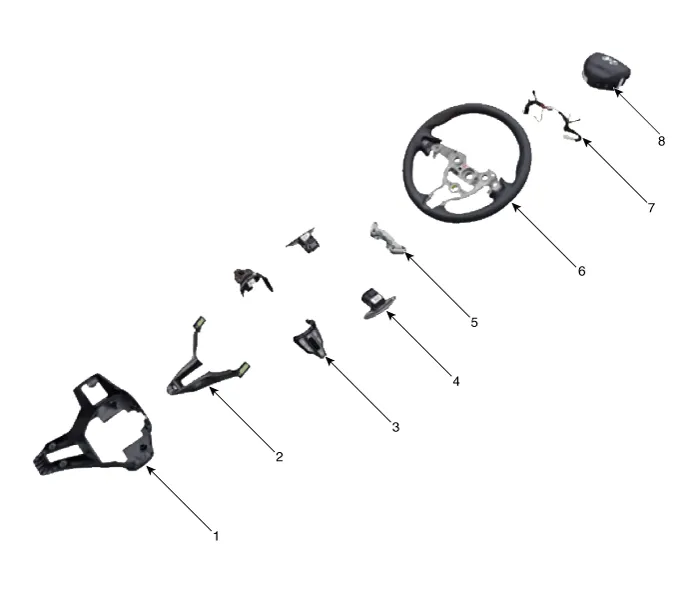

[G 1.6 T-GDI]

1. Lower cover
2. Switch bezel
3. Remote control switch
4. Paddle shift
5. Damper
6. Steering wheel
7. Wiring
8. Drive air bag module (DAB)

    Removal1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.2.Turn the steering wheel so that the front wheels can face straight ahead.
