Hyundai Elantra (CN7): Horn / Components and components location

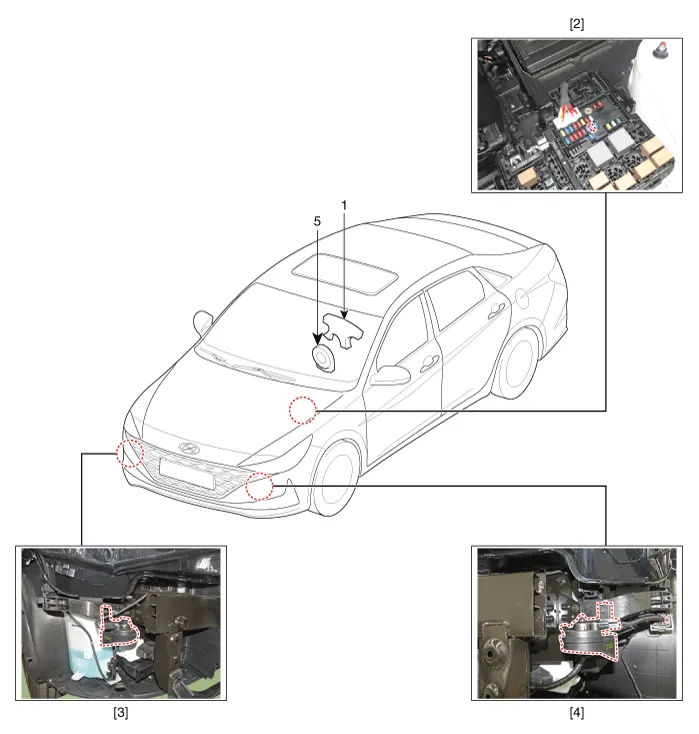

| Component Location |
| 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn (Low pitch) | 4. Horn (High pitch) 5. Clock spring |
Removal1. Remove the front bumper cover.(Refer to Body - "Front Bumper Cover")2.Remove the bolts and disconnect the horn connectors (A), then remove the horn (B).
