Hyundai Elantra (CN7): Body Electrical System / Horn
Components and components location

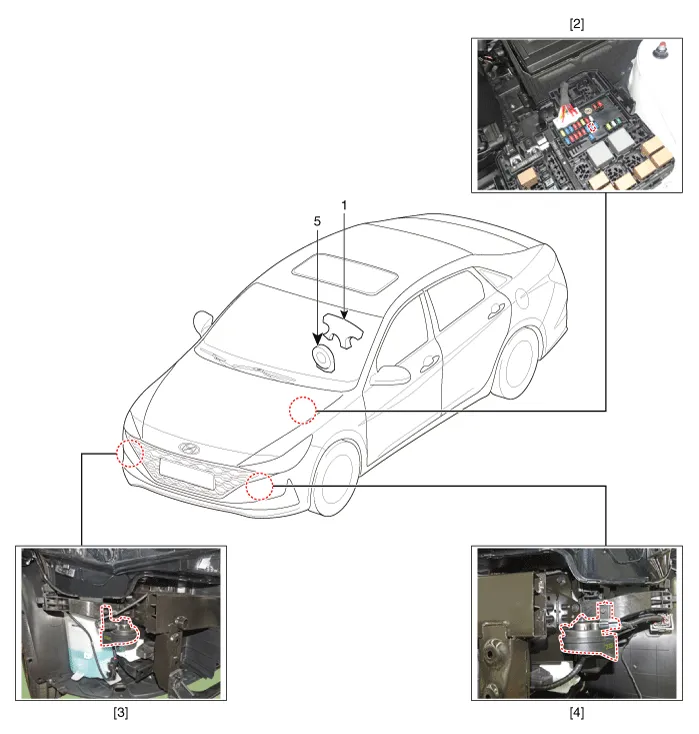

| Component Location |
| 1. Horn switch 2. Horn relay (Engine room compartment) 3. Horn (Low pitch) | 4. Horn (High pitch) 5. Clock spring |
Repair procedures
| Removal |
| 1. | Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") |

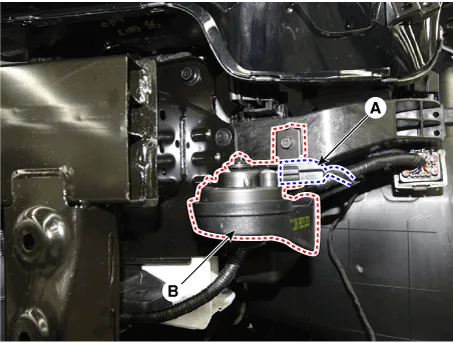

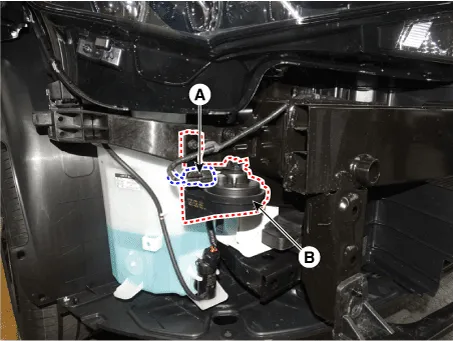

| 2. | Remove the bolts and disconnect the horn connectors (A), then remove the horn (B). [Low pitch]
[High pitch]
|
| Installation |
| 1. | Install the horns after connect the horn connectors. |
| 2. | Install the front bumper cover. |
Components and components location Component1. Steering column2. Multifunction switch3. Clock spring4. Steering wheel5. Driver airbag module (DAB) Specifications Specifications Items Specifications Rated voltageDC 12VOperating temperature range-40 to +176°F (-40°C to +80°C)Quantity of standard loadWasherRelated current : 7ABlucking current : 15AInrush current : 20A Repair procedures Removal1.
