Hyundai Elantra (CN7): Audio / Components and components location

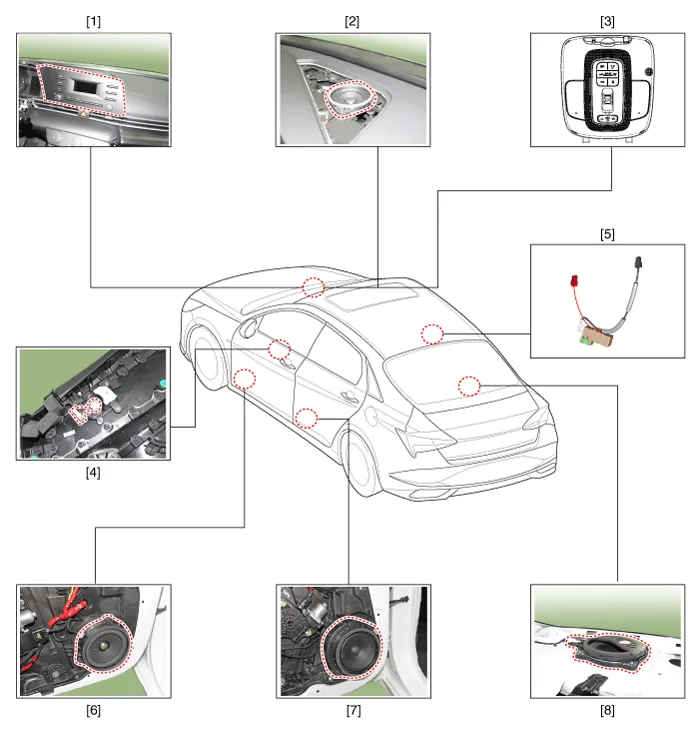

| Component Location |
| 1. Audio unit 2. Center speaker 3. Hands-free mic (Built-in overhead console) 4. Tweeter speaker | 5. Glass antenna amplifier 6. Front door speaker 7. Rear door speaker 8. Woofer speaker |
SpecificationsAudio Items AUDIO ModelRADIO/MP3Power supplyDC 14.4VParasitic currentMax 21W X 4Antenna80PF 75ΩTuning typePLL SYNTHESIZED TUNING
