Hyundai Elantra (CN7): Keyless Entry And Burglar Alarm / Components and components location

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body Electrical System / Keyless Entry And Burglar Alarm / Components and components location

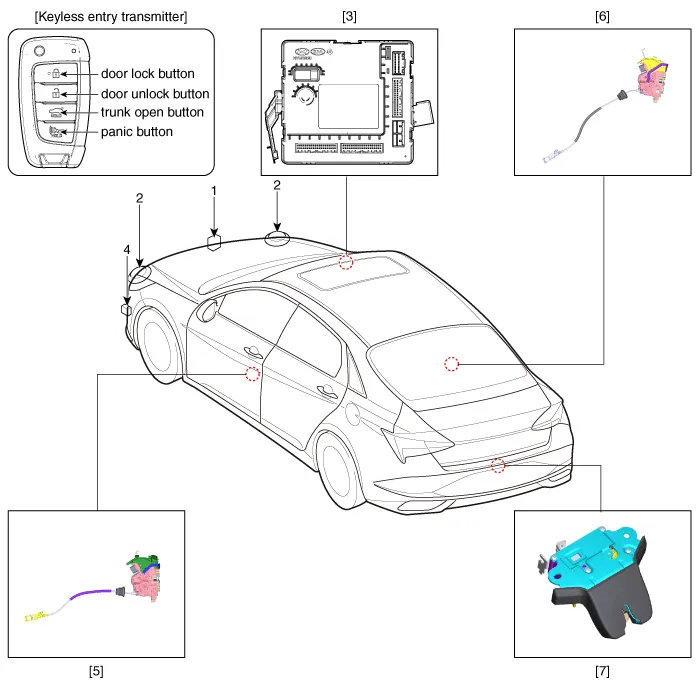

Component Location

1. Hood switch
2. Burglar horn
3. Integrated body control unit (IBU)
4. Door lock / unlock buzzer
5. Front dodr lock actuator & switch
6. Rear dodr lock actuator & switch
7. Trunk lock actuator & switch

    DescriptionBurglar Alarm State [B/A State] B/A State Description DISARM1) In "DISARM" state, no vehicle start inhibition.

    Specification Item Specification Power source3VOperating temperature-10°C ~ +60°CRF ModulationFSKLF ModulationASKRF frequency433.
