Hyundai Elantra (CN7): Driver Parking Assistance System / Parking Collision-Avoidance Assist (PCA)

Hyundai Elantra (CN7) 2021-2026 Service Manual / Advanced Driver Assistance System (ADAS) / Driver Parking Assistance System / Parking Collision-Avoidance Assist (PCA)

Components and components location

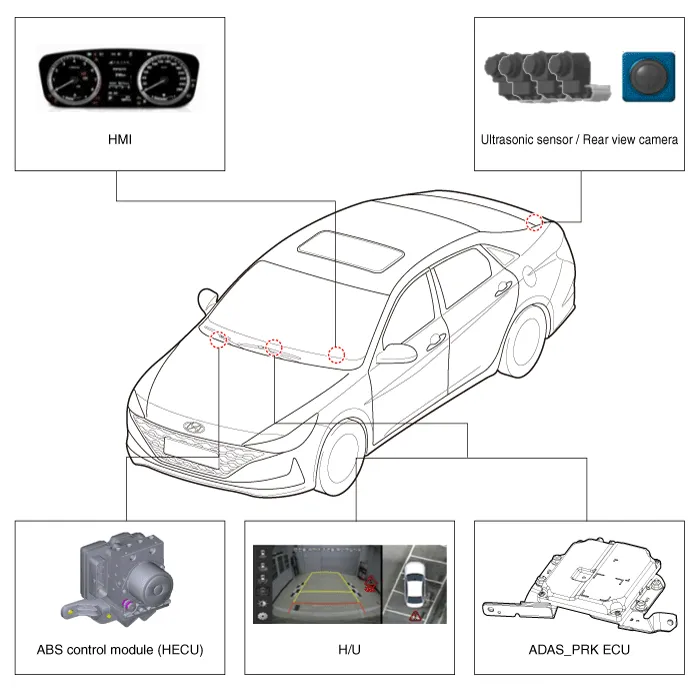

Components and Components Location

Schematic diagrams

Schematic Diagrams

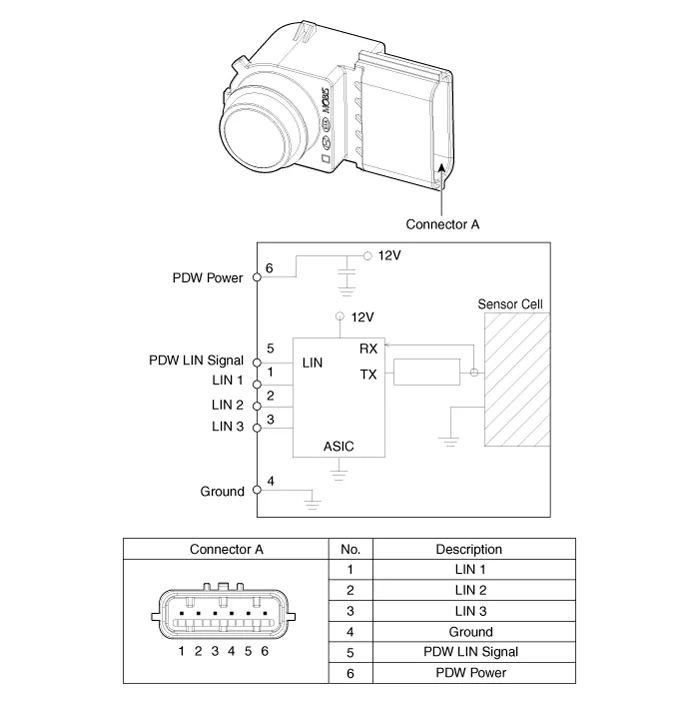

Parking Collision-Avoidance Assist (PCA) Ultrasonic sensor

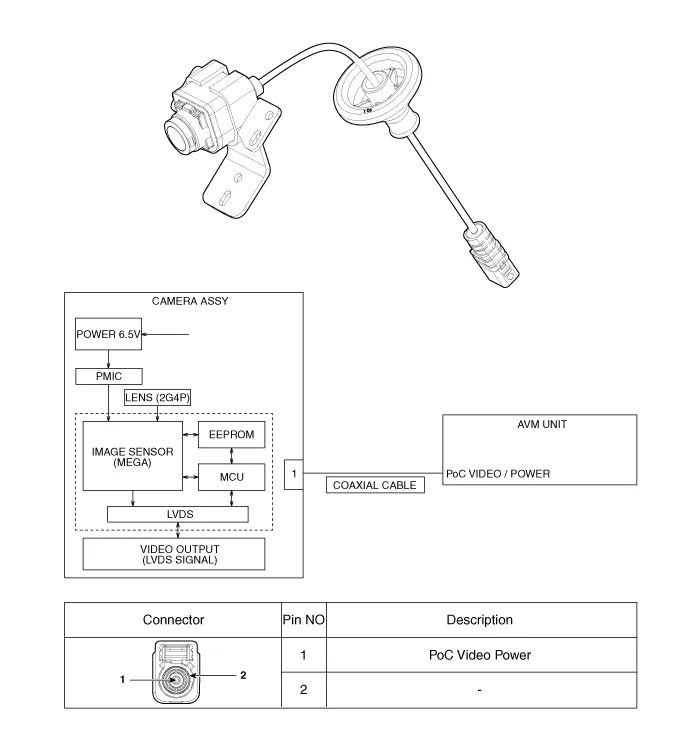

Parking Collision-Avoidance Assist (PCA) Rear view camera

Repair procedures

Removal

Parking Collision-Avoidance Assist (PCA) Unit

1.	Disconnect the negative (-) battery terminal.

2.	Remove the ADAS PRK Unit. (Refer to Advanced Driver Assistance System (ADAS) - "Driver Parking Assistance System")

Parking Collision-Avoidance Assist (PCA) Ultrasonic sensor

1.	Disconnect the negative (-) battery terminal.

2.	Remove the ultrasonic sensor. (Refer to Advanced Driver Assistance System (ADAS) - "Parking Distance Warning (PDW)")

Parking Collision-Avoidance Assist (PCA) Rear view camera

1.	Disconnect the negative (-) battery terminal.

2.	Remove the rear view camera. (Refer to Advanced Driver Assistance System (ADAS) - "Rear View Monitor (RVM)")

Installation

1.	Install in the reverse order of removal.
