Hyundai Elantra (CN7): Fuses And Relays / Components and components location
| Component Location |

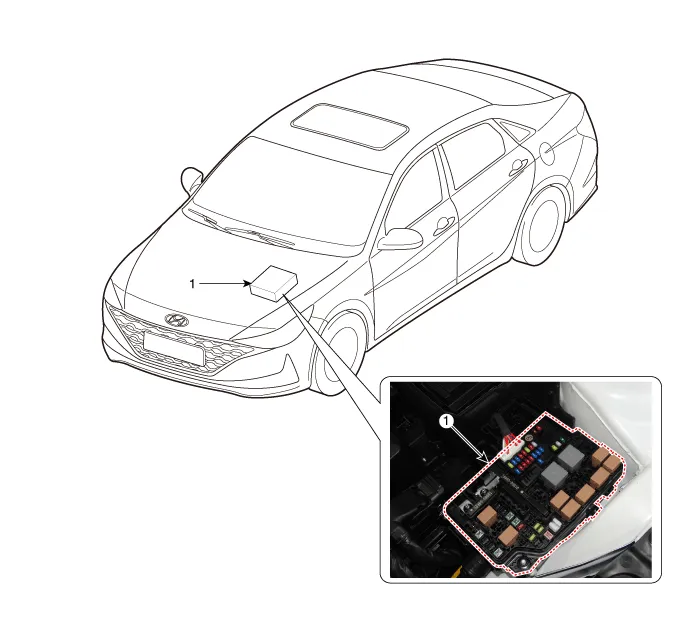

| 1. Engine room junction block |

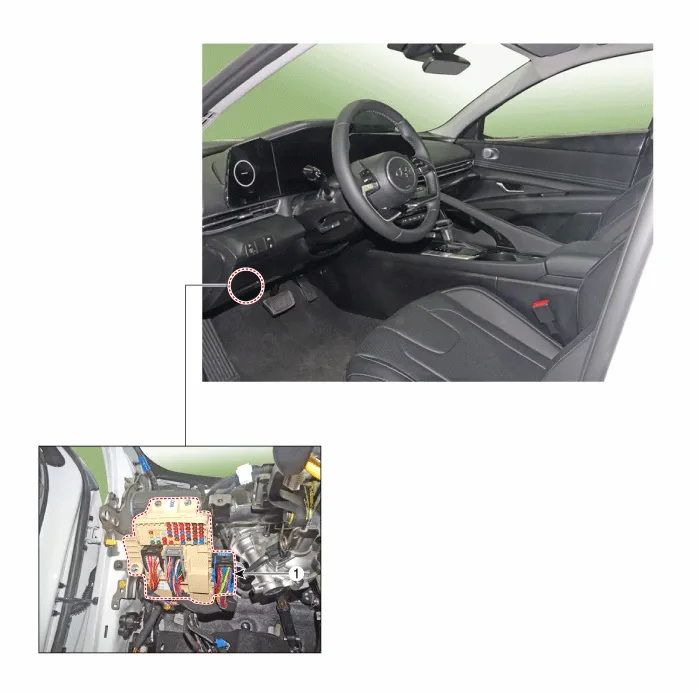

| 1. ICU (Integrated Central Control Unit) |
Repair procedures Inspection1.Disconnect the negative (-) battery terminal.2.Pull out the relay from the engine compartment relay block.Power Relay (Type A) Check for continuity between the terminals.
