Hyundai Elantra (CN7): Power Windows / Components and components location

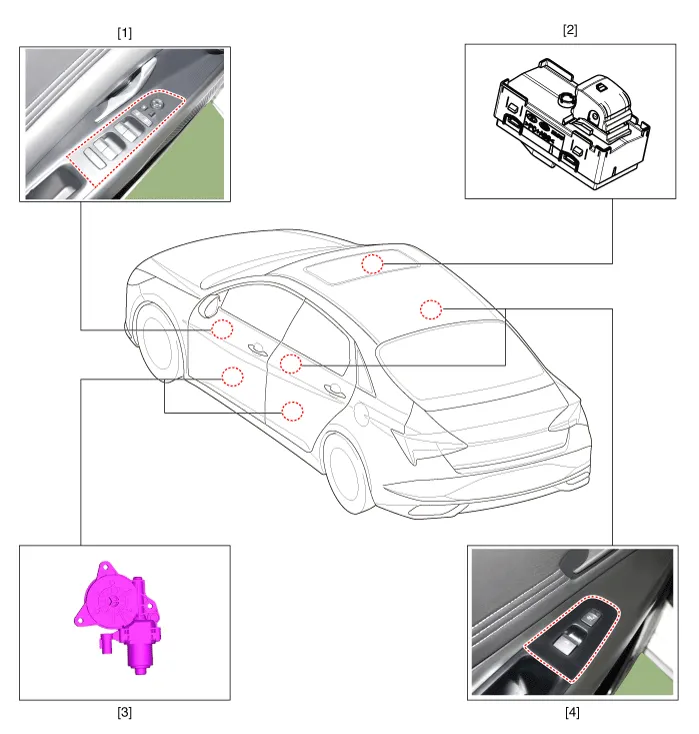

| Component Location |
| 1. DDM (Driver Door Module) 2. ADM (Assistant Door Module) | 3. Front/Rear window motor 4. RDM / RLDM (Rear Door Module) |
Function of Safety Power WindowWhen driver door power window auto-up switch is operated, safety function is activated.1.Safety function conditionWhen detect the force of 100N (using the 10N/mm spring) during the window rising, window is reversed.
Components and components location Components Schematic diagrams Circuit DiagramStandard type Repair procedures Inspection • Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
Other information:
Hyundai Elantra (CN7) 2021-2026 Service Manual: PM Sensor
Description and operation DiscriptionMonitor the air quality inside the vehicle in real time (PM sensor) and display the status on the screen.Automatically operate when fine dust concentration is high (Condition: Bet mode + A/C ON + 3rd speed or higher) Components and components location Components Location1.
Hyundai Elantra (CN7) 2021-2026 Service Manual: Mode Control Actuator
Description and operation DescriptionThe mode control actuator is located at the heater unit.It adjusts the position of the mode door by operating the mode control actuator based on the signal of the A/C control unit. Pressing the mode select switch makes the mode control actuator shift in order of Vent → Bi-Level → Floor → Mix.
