Components and components location

Component Location

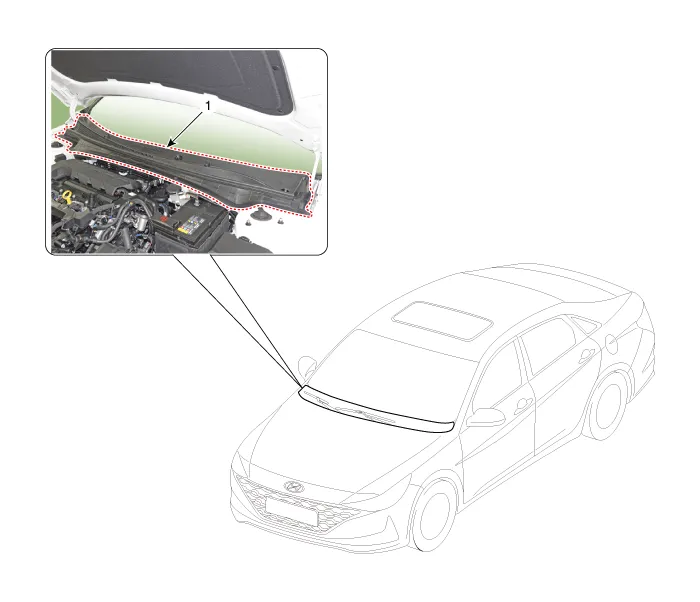

1. Cowl top cover

Repair procedures

Replacement

1.	Remove the plug hole (A).

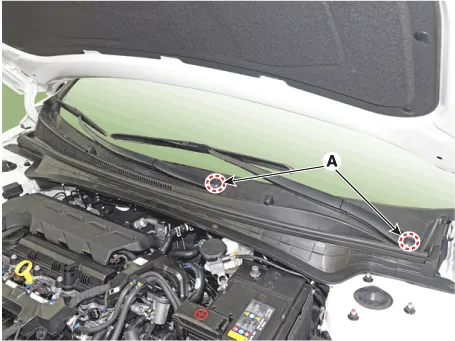

Loosen the mounting nuts and remove the wiper arm (A).

Tightening torque :

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

3.	Disconnect the washer nozzle (A).

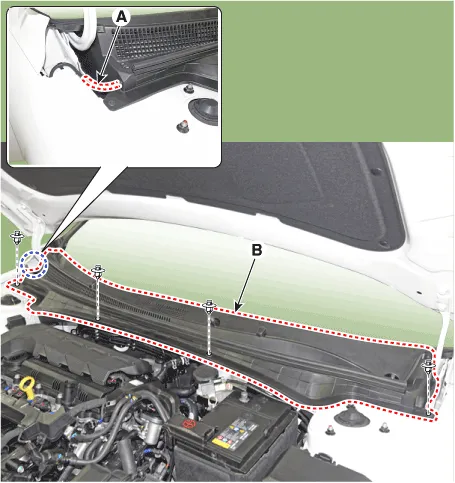

4.	Detach the clips, then remove the cowl top cover (B).

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
