Outside Rear View Mirror

Components and components location

Component Location

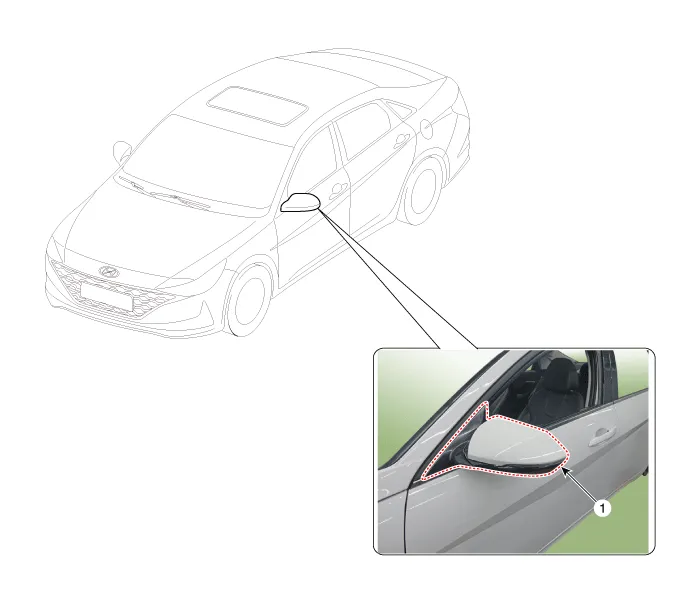

1. Outside rear view mirror


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
2.

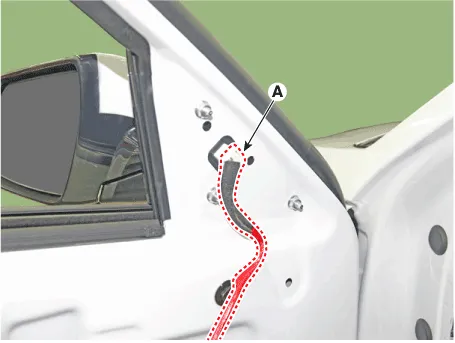

Disconnect the outside rear view mirror connector (A).

3.

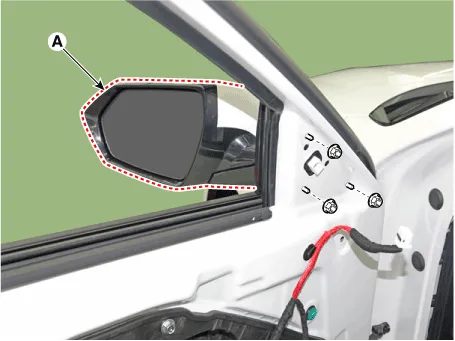

After loosening the mounting nuts, remove the outside rear view mirror (A).
Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

4.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Replace any damaged clips (or pin - type retainers).

Inside Rear View Mirror

Components and components location

Component Location

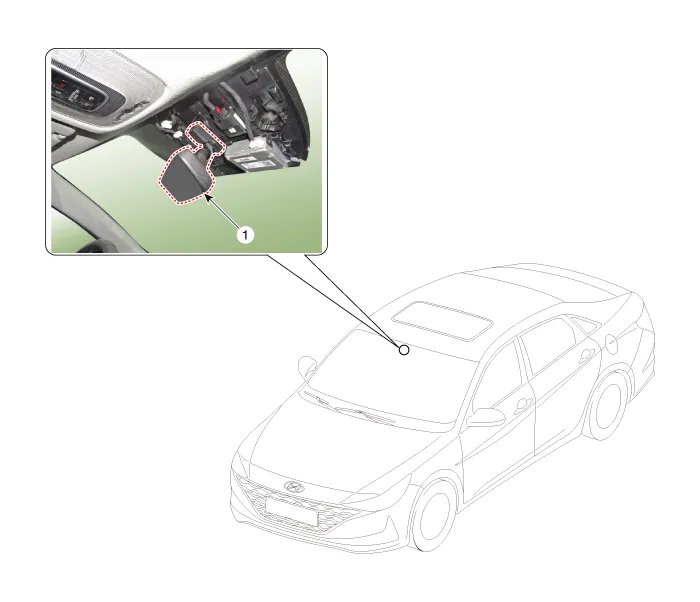

1. Inside rear view mirror


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

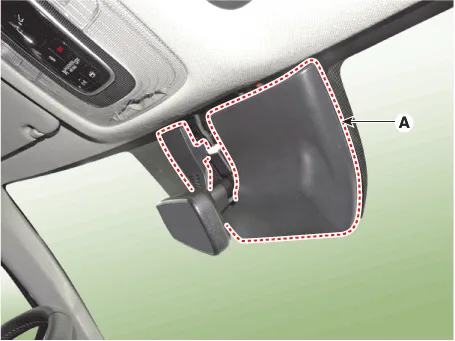

Remove the inside rear view mirror cover (A).

2.

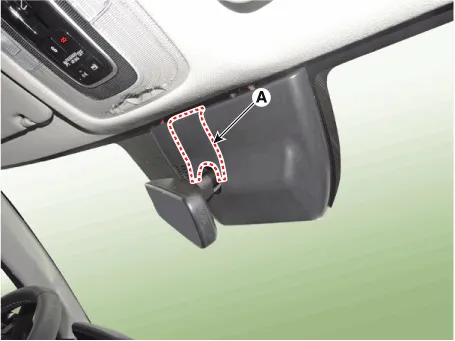

Using a screwdriver or remover, remove the rain sensor cover (A).

3.

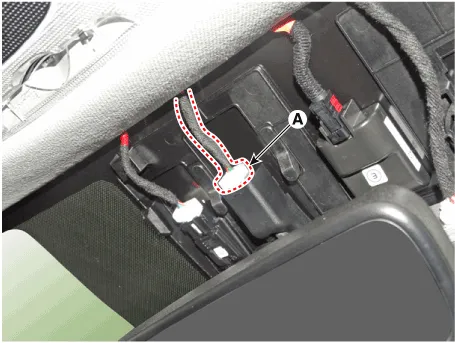

Disconnect the inside rear view mirror connector (A).

4.

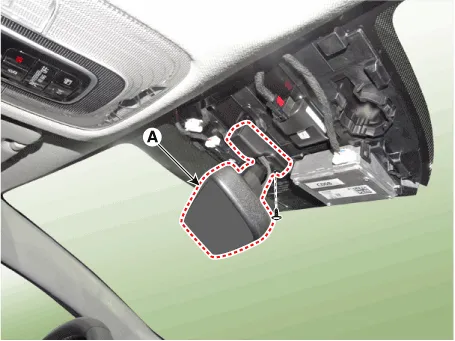

Loosen the mounting screw and push the inside rear view mirror base upward to remove the inside rear view mirror assembly (A).

5.
To install, reverse the removal procedure.

•
Make sure the connector is connected properly.
•
Be careful not to damage the windshield glass.
