Hyundai Elantra (CN7): Sunroof / Sunroof Guide

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Sunroof / Sunroof Guide

Repair procedures

Replacement
1.
Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly")
2.
Remove the sunroof sunshade.
(Refer to Sunroof - "Sunroof Sunshade")
3.

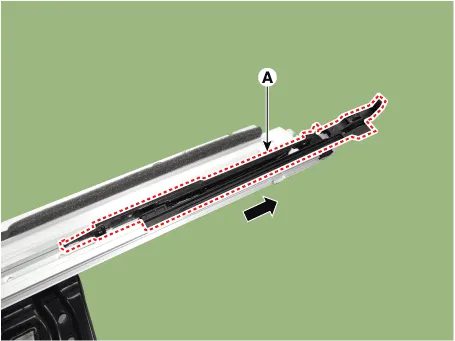

Down the slide by pushing it and then remove the drip link assembly (A).

4.

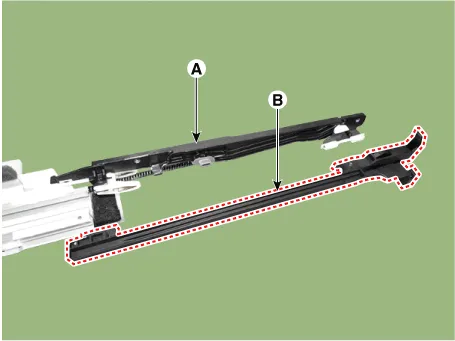

Separate the drip link (B) and guide (A).

5.

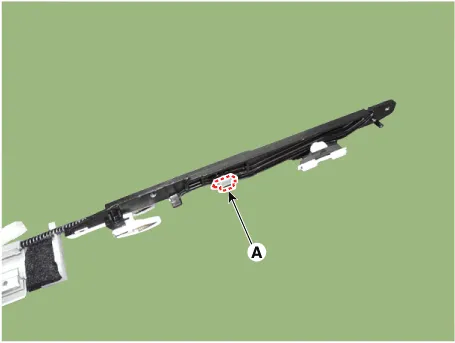

Remove the shoe (A).

6.

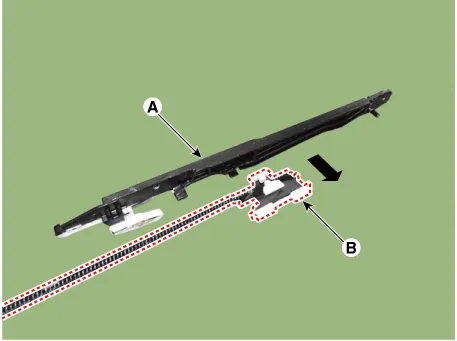

Separate the guide assembly (A) and the cable (B) by pushing them in the direction of the arrow.

7.
To install, reverse the removal procedure.

•

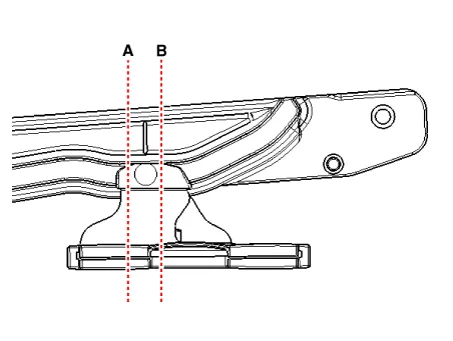

Place the position between (A) and (B) like the picture.
•
Make sure to initialize the motor.
