Hyundai Elantra (CN7): Driving Convenience / Cruise Control (CC). Function operation

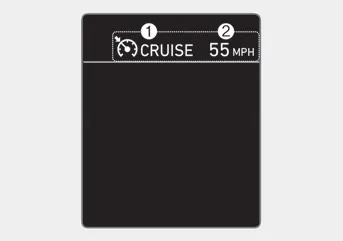

(1) Cruise indicator
(2) Set speed

Cruise Control will allow you to drive at speeds above 20 mph (30 km/h) without depressing the accelerator pedal.

Function operation

To set speed

1. Accelerate to the desired speed, which must be more than 20 mph (30 km/h).

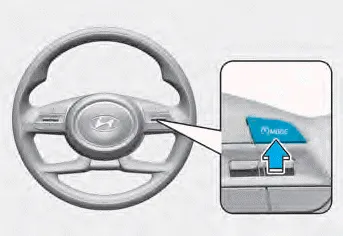

2. Press the Driving Assist button at the desired speed. The set speed and Cruise ( ) indicator will illuminate on the cluster.

3. Release the accelerator pedal. Vehicle speed will maintain the set speed even when the accelerator pedal is not depressed.

Information

On a steep slope, the vehicle may slightly slow down or speed up while driving uphill or downhill.

To increase speed

• Push the + switch up and release it immediately. The cruising speed will increase by 1 mph (1 km/h) each time the switch is operated in this manner.
• Push the + switch up and hold it while monitoring the set speed on the cluster. The cruising speed will increase to the nearest multiple of ten (multiple of five in mph) at first, and then increase by 5 mph (10 km/h) each time the switch is operated in this manner. Release the switch when the desired speed is shown and the vehicle will accelerate to that speed.

To decrease speed

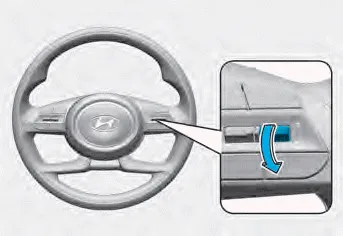

• Push the - switch down and release it immediately. The cruising speed will decrease by 1 mph (1 km/h) each time the switch is operated in this manner.
• Push the - switch down and hold it while monitoring the set speed on the cluster. The cruising speed will decrease to the nearest multiple of ten (multiple of five in mph) at first, and then decrease by 5 mph (10 km/h) each time the switch is operated in this manner. Release the switch at the speed you want to maintain.

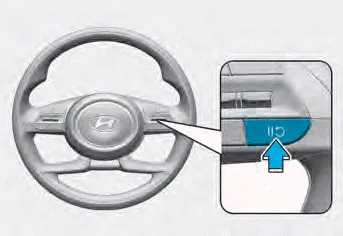

To temporarily pause the function

Cruise Control will be paused when:

• Depressing the brake pedal.
• Pushing the button.
• Shifting the gear to N (Neutral).
• Decreasing vehicle speed to less than approximately 20 mph (30 km/h).
• ESC (Electronic Stability Control) is operating.
• Downshifting to 2nd gear when in Manual Shift mode.

The set speed will turn off but the Cruise ( ) indicator will stay on.

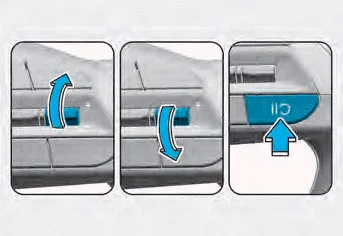

To resume the function

Push the +, - switch or button.

If you push the + switch up or - switch down, vehicle speed will be set to the current speed on the cluster.

If you push the button, vehicle speed will resume to the preset speed.

Vehicle speed must be above 20 mph (30 km/h) for the function to resume.

To turn off the function

Press the Driving Assist button to turn Cruise Control off. The Cruise ( ) indicator will go off.

Always press the Driving Assist button to turn Cruise Control off when not in use.

Information

If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Cruise Control. However, Manual Speed Limit Assist will turn on.

WARNING

Take the following precautions when using Cruise Control:

• Always set the vehicle speed to the speed limit in your region.
• Keep Cruise Control off when the system is not in use, to avoid inadvertently setting a speed. Check that the Cruise ( ) indicator is off.
• Cruise Control does not substitute for proper and safe driving. It is the responsibility of the driver to always drive safely and should always be aware of unexpected and sudden situations from occurring.
• Always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
• Do not use Cruise Control when it may be unsafe to keep the vehicle at a constant speed:
  -- When driving in heavy traffic, or when traffic conditions make it difficult to drive at a constant speed
  -- When driving on rainy, icy, or snow-covered roads
  -- When driving on hilly or windy roads
  -- When driving in windy areas
  -- When driving with limited view (possibly due to bad weather, such as fog, snow, rain and sandstorm)
