Hyundai Elantra (CN7): Front Door / Front Door Belt Inside Weatherstrip

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Inside Weatherstrip

Repair procedures

Replacement

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

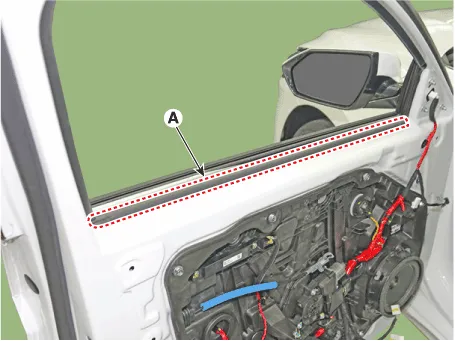

2.	Remove the front door belt inside weatherstrip (A).

To install, reverse the removal procedure.

•	When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
