Hyundai Elantra (CN7): Front Door / Front Door Belt Outside Weatherstrip

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Belt Outside Weatherstrip

Repair procedures

Replacement
1.
Remove the outside rear view mirror.
(Refer to Mirror - "Outside Rear View Mirror")
2.
Pull down the front door window glass to the lowest level by pressing the power window glass switch.
3.

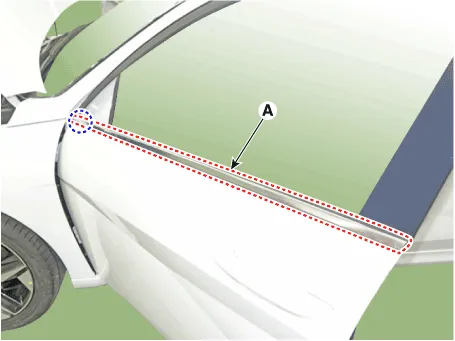

After loosening the mounting screws, remove the front door belt outside weatherstrip (A).

4.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin - type retainers).

    Components and components location Component Location 1. Front door outside handle Repair procedures Replacement1.Remove the plug hole (A).

    Repair procedures Replacement1.Remove the front door trim.(Refer to Front Door - "Front Door Trim")2.Remove the front door belt inside weatherstrip (A).
