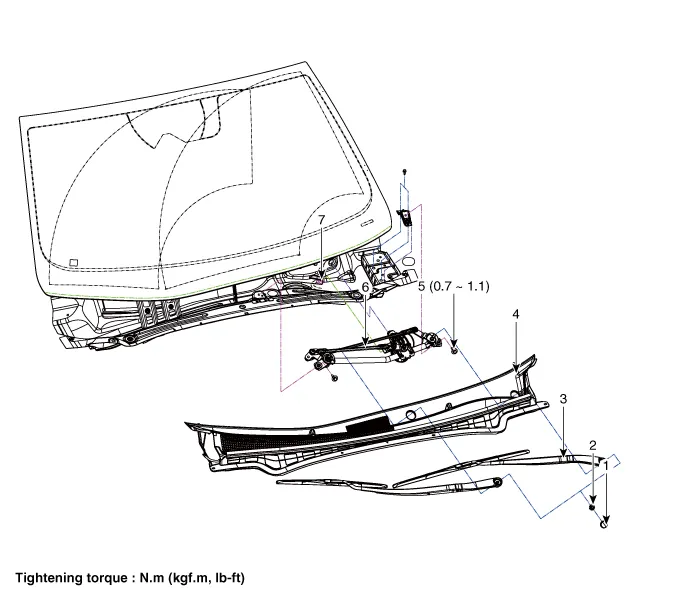

| Component Location |

| 1. Cap 2. Nut 3. Wiper arm & blade 4. Cowl top cover | 5. Bolt 6. Wiper motor & linkage assembly 7. Wiper motor connector |
| Removal |
| 1. | Disconnect the negative (-) battery terminal. |

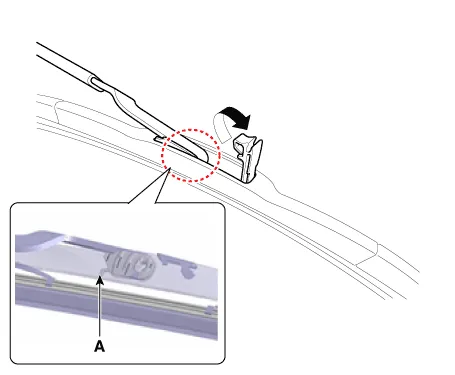

| 2. | If necessary, release the wiper blade fixing clip by pulling up and remove the wiper blade from the inside radius of wiper arm.
|
| 3. | Remove the cowl top cover. (Refer to Body - "Cowl Top Cover") |

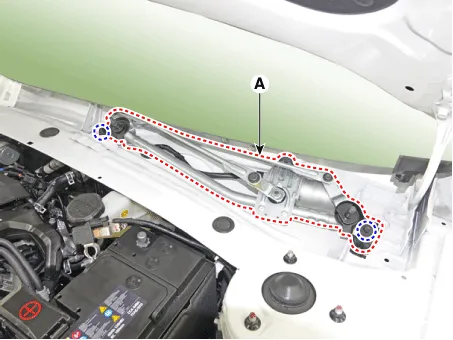

| 4. | Remove the windshield wiper motor and linkage assembly (A) after removing 2 bolts.
|

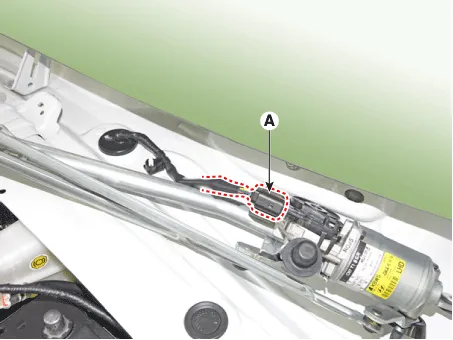

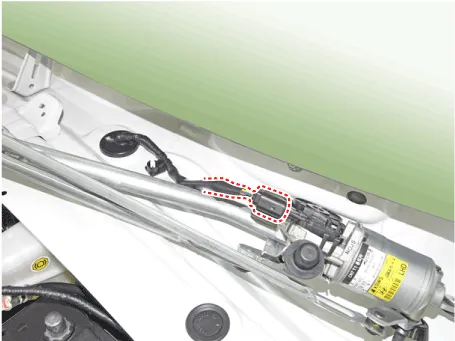

| 5. | Disconnect the wiper motor connector (A) from the wiper motor & linkage assembly.
|

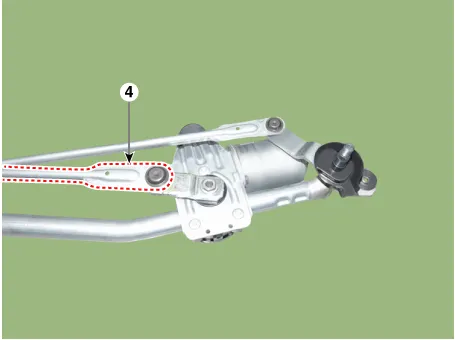

| 6. | Hold the wiper motor crank arm and remove the upper linkage (A) from the wiper motor crank arm.
|
| 7. | Loosen the mounting nut, screws and remove the crank arm (A) and wiper motor (B).
|
| Installation |

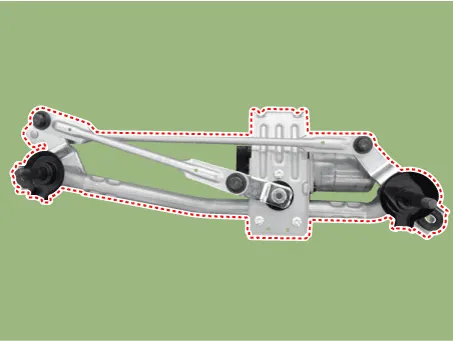

| 1. | Install the wiper motor and linkage assembly and then connect the wiper motor connector.
|
| 2. | Install the crank arm.
|
| 3. | Install the cowl top cover. |
| 4. | Install the windshield wiper arm and blade.
|

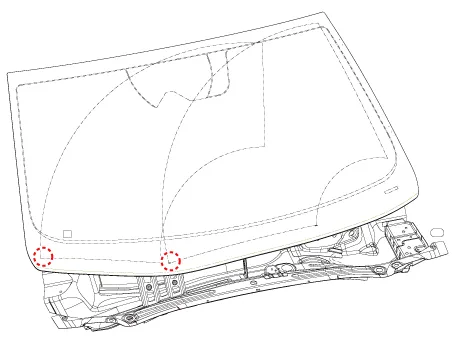

| 5. | Install the wiper arm and blade to the specified position.
|
| Inspection |
| 1. | Remove the connector from the wiper motor.
|

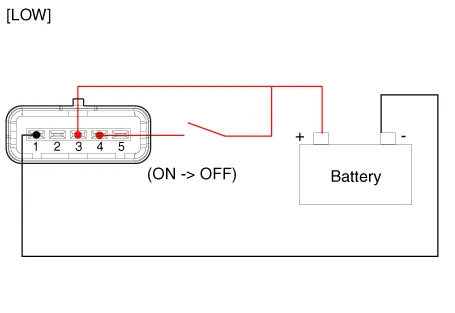

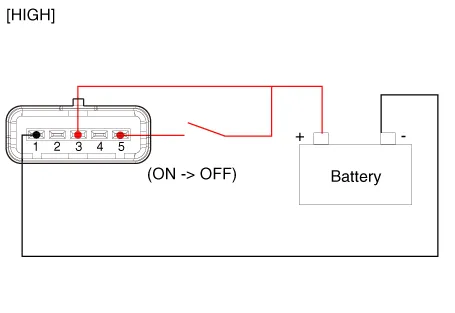

| 2. | Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5.
|
| 1. | In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool). The diagnostic system (Diagnostic tool) provides the following information.
|

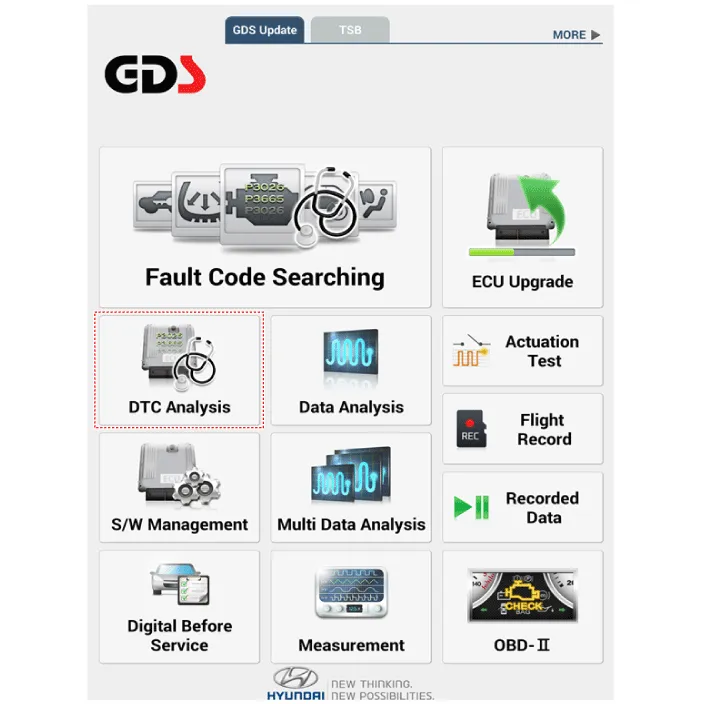

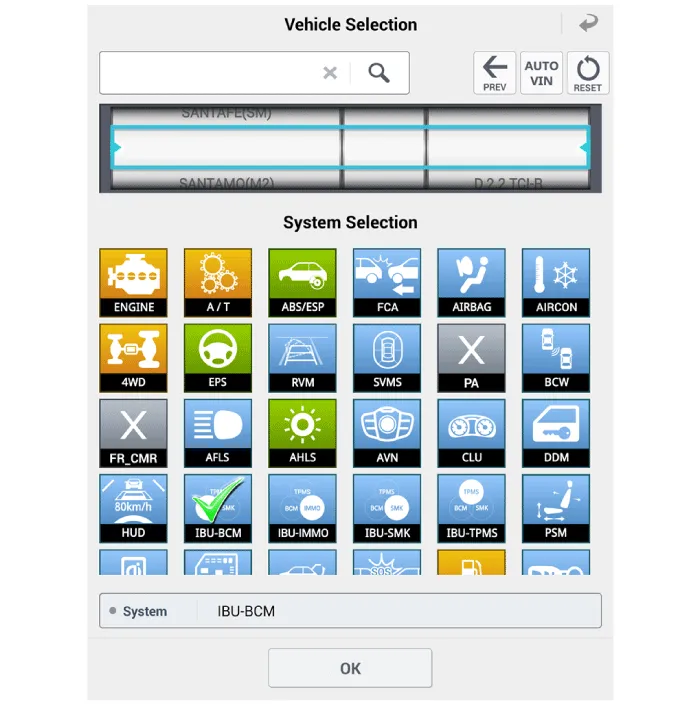

| 2. | If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".
|

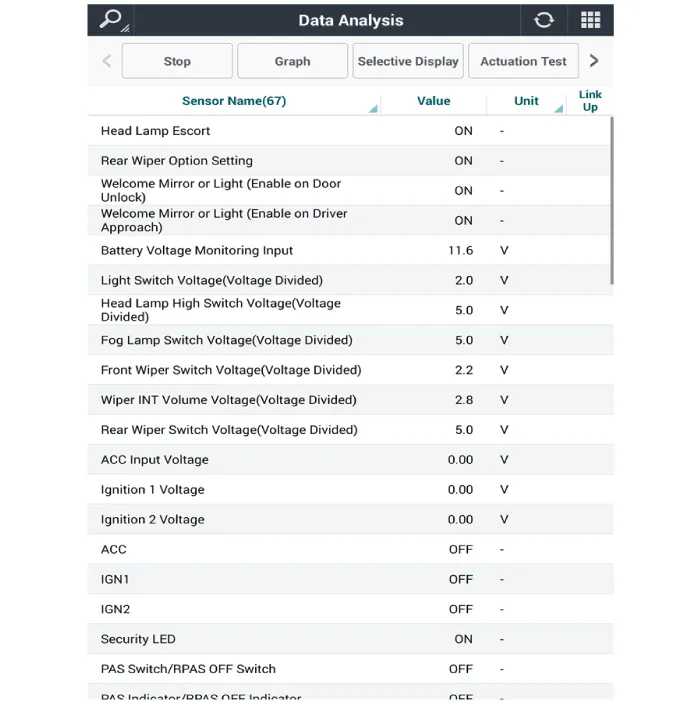

| 3. | Select the 'Data Analysis'.
|
| 4. | Select the 'IBU_BCM' to search the current state of the input/output data.
|
