Hyundai Elantra (CN7): Fuses / Fuse/Relay Panel Description. Engine compartment fuse panel
Instrument panel fuse panel

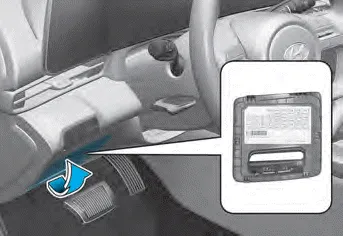

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.

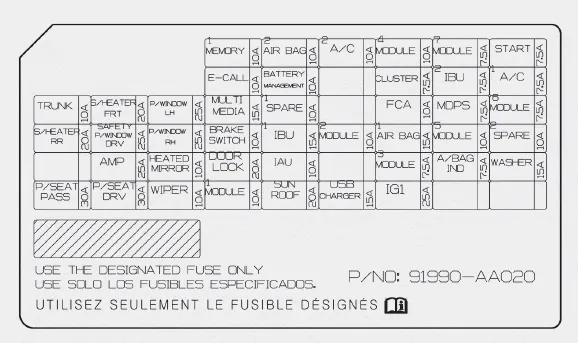

Driver’s side fuse panel

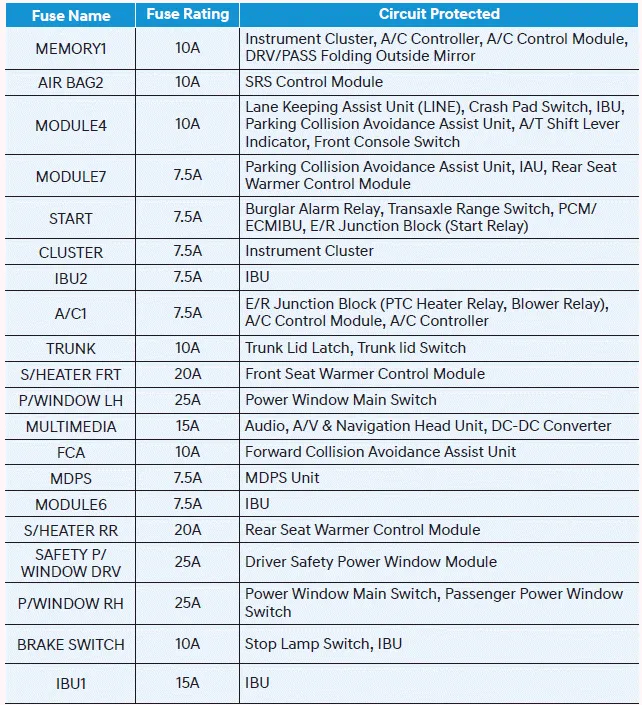

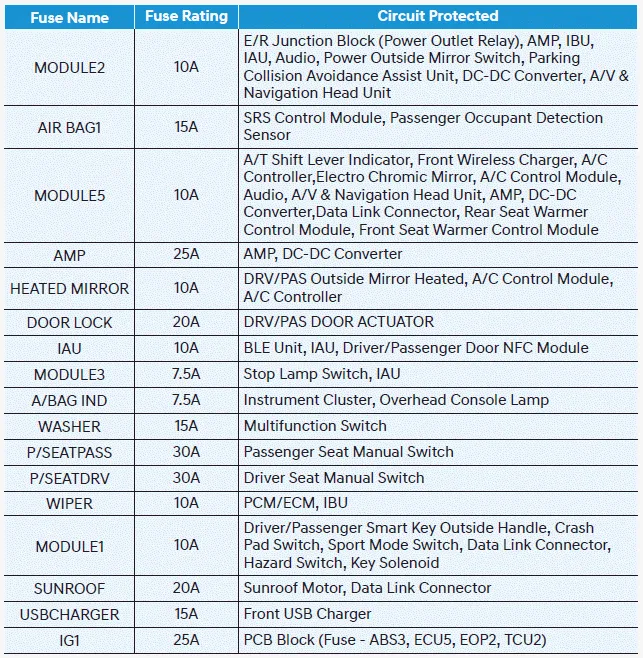

Driver’s side fuse panel
Engine compartment fuse panel

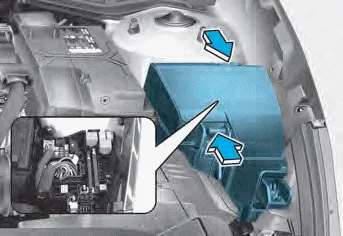

Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle; the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

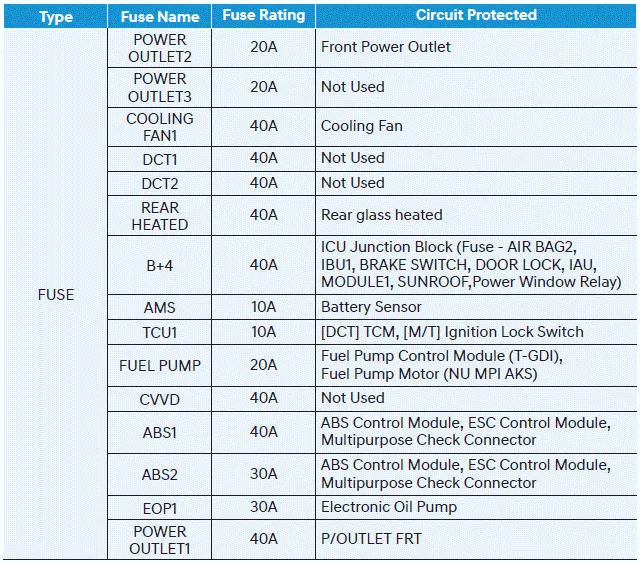

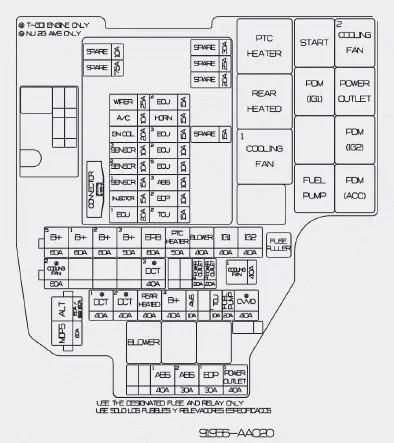

Engine compartment fuse panel

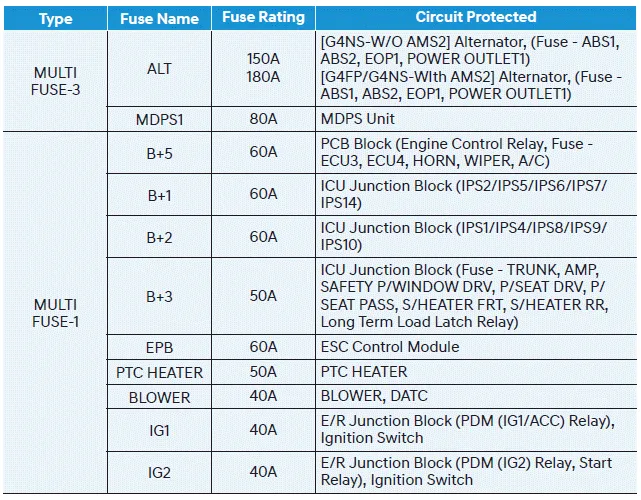

Engine compartment fuse panel

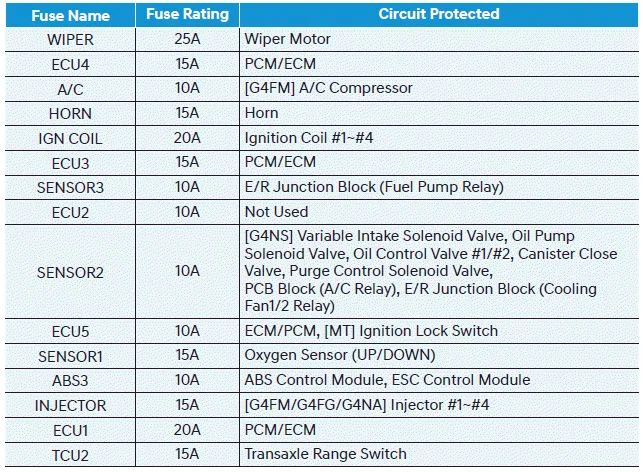

Engine compartment fuse panel
Blade type fuse Cartridge type fuse 1. Turn the engine off. 2. Turn all other switches OFF. 3. Remove the fuse panel cover by pressing the tap and pulling up.
Consult an authorized HYUNDAI dealer to replace most vehicle light bulbs. It is difficult to replace vehicle light bulbs because other parts of the vehicle must be removed before you can get to the bulb.
