Hyundai Elantra (CN7): Instrument Cluster / Instrument Cluster Control
Adjusting instrument cluster illumination

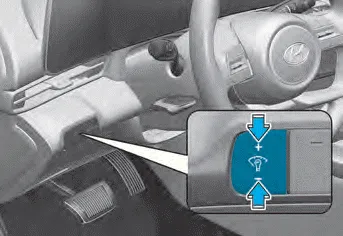

When the vehicle's parking lamps or headlamps are on, press the illumination control button to adjust the brightness of the instrument panel illumination.
When pressing the illumination control button, the interior switch illumination intensity is also adjustable.
- The brightness of the instrument panel illumination is displayed.
- If the brightness reaches the maximum or minimum level, a chime will sound.
WARNING
Never adjust the instrument cluster while driving. Doing so could lead to driver distraction which may cause an accident and lead to vehicle damage, serious injury, or death.
„„Conventional cluster (Type A) Full LCD cluster (Type B) 1. Tachometer 2. Speedometer 3. Engine coolant temperature gauge 4. Fuel gauge 5. Warning and indicator lights 6.
Speedometer The speedometer indicates the speed of the vehicle and is calibrated in miles per hour (MPH) and/or kilometers per hour (km/h). Tachometer The tachometer indicates the approximate number of engine revolutions per minute (RPM).
