Hyundai Elantra (CN7): LCD Display / LCD Display Control

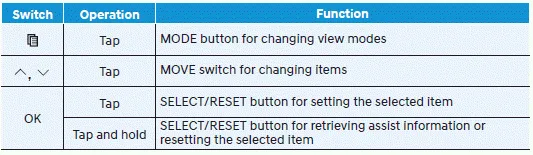

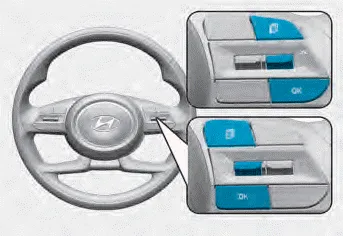

The LCD display modes can be changed by using the control buttons.
Information
When the infotainment system is applied, only the User’s Setting mode on the infotainment system is supported but the User’s Setting mode on the instrument cluster is not supported.
The information provided may differ depending on which functions are applicable to your vehicle.
