Hyundai Elantra (CN7): Rear Door / Rear Door Inside Handle

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Inside Handle

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

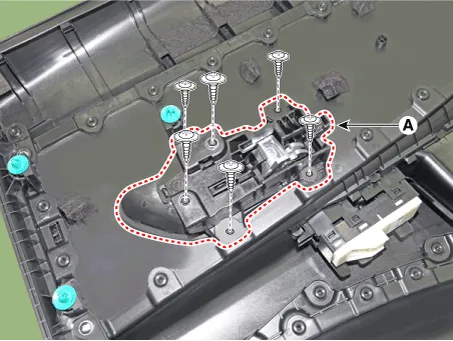

After loosening the mounting screws, remove the rear door inside handle (A).

3.
To install, reverse the removal procedure.

•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin - type retainers).
