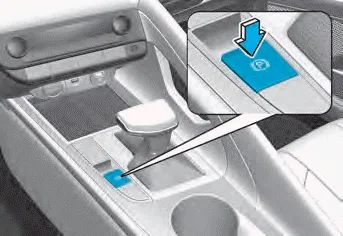

To release the EPB (Electronic Parking Brake), press the EPB switch in the following condition:
Make sure the Parking Brake Warning Light goes off.
To release EPB (Electronic Parking Brake) automatically:
• Intelligent variable transmission
1. Start the engine.
2. Fasten the driver’s seat belt.
3. Close the driver’s door, engine hood and trunk.
4. Depress the accelerator pedal while the shift lever is in R (Reverse) or D (Drive).
Make sure the Parking Brake Warning light goes off.
Information
NOTICE
EPB (Electronic Parking Brake) may be automatically applied when:
