Hyundai Elantra (CN7): Body (Interior and Exterior) / Roof Trim

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Roof Trim

Components and components location

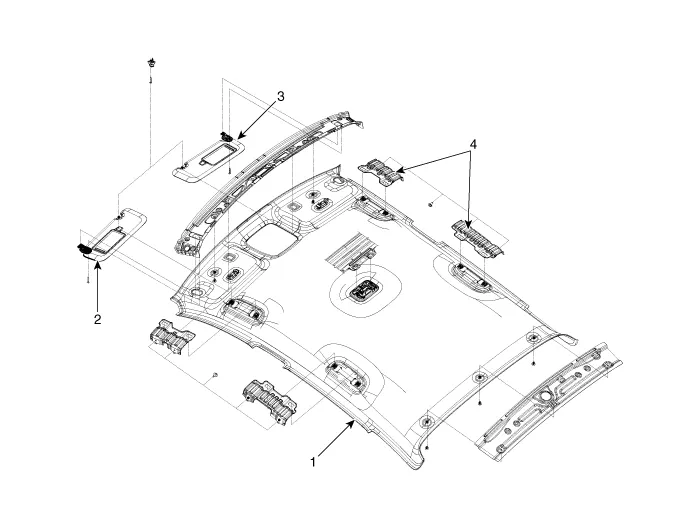

Components
[General Type]

1 . Roof trim
2 . Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket

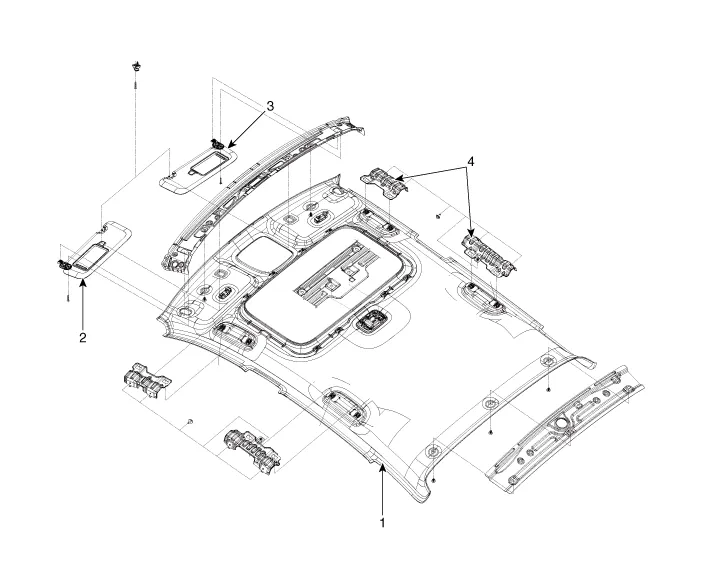

[Sunroof Type]

1 . Roof trim
2 . Sunvisor [LH]
3. Sunvisor [RH]
4. Assist handle bracket

Sunvisor

Components and components location

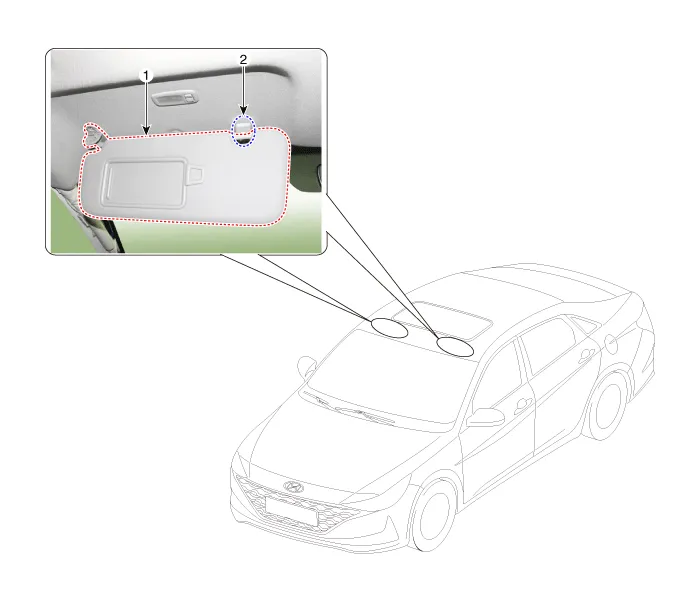

Component Location

1. Sunvisor
2. Retainer

Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

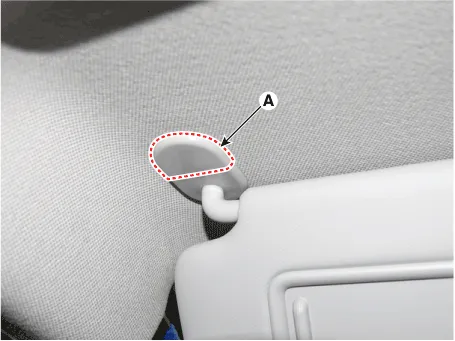

Using a screwdriver or remover, remove the sunvisor pivot cover (A).

2.

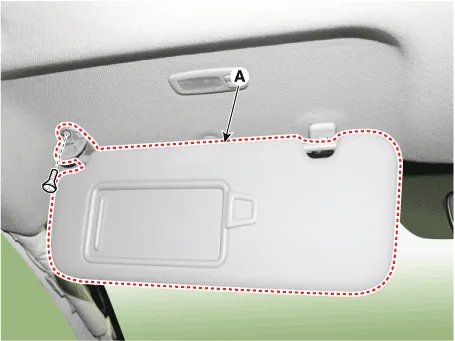

Loosen the mounting screws, remove the sunvisor (A).

3.

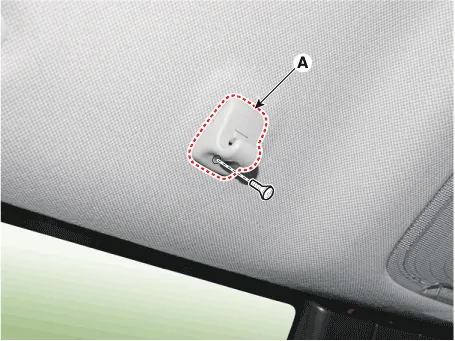

Loosen the mounting screw, remove the retainer (A).

4.
Install in the reverse order of removal.

Assist Handle

Components and components location

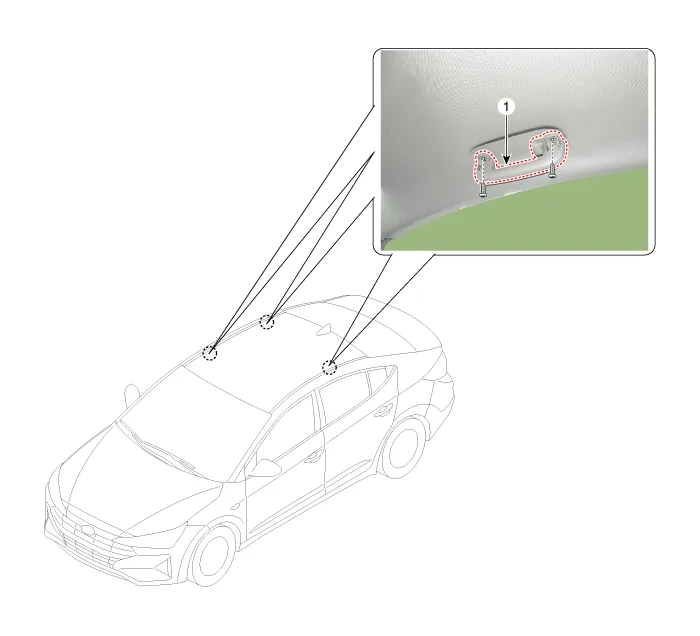

Component Location

1. Assist handle


Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

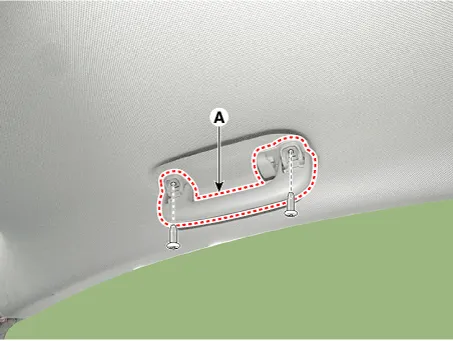

After lifting up the assist handle caps and loosening the mounting screws, remove the assist handle (A).

2.
To install, reverse the removal procedure.

Roof Trim Assembly

Components and components location

Component Location

1. Roof Trim Assembly


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the front pillar trim.
(Rear to Interior Trim - "Front Pillar Trim")
4.
Remove the canter pillar upper trim.
(Rear to Interior Trim - "Center Pillar Trim")
5.
Remove the rear pillar trim.
(Rear to Interior Trim - "Rear Pillar Trim")
6.
Remove the sunvisor and retainer.
(Rear to Roof Trim - "Sunvisor")
7.
Remove the assist handle.
(Rear to Roof Trim - "Assist Handle")
8.
Remove the overhead console lamp.
(Rear to Body Electrical System - "Overhead Console Lamp")
9.
Remove the room lamp.
(Rear to Body Electrical System - "Room Lamp")
10.
Disconnect the rear view mirror connector.
(Refer to Body Electrical System - "Electro Chromic Inside Rear View Mirror")
11.
Disconnect the rain sensor connector.
(Refer to Body Electrical System - "Rain Sensor")
12.

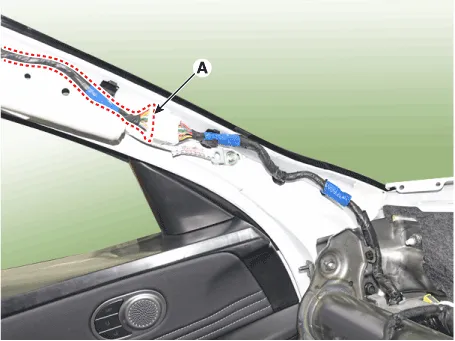

Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
[LH]

[RH]

13.

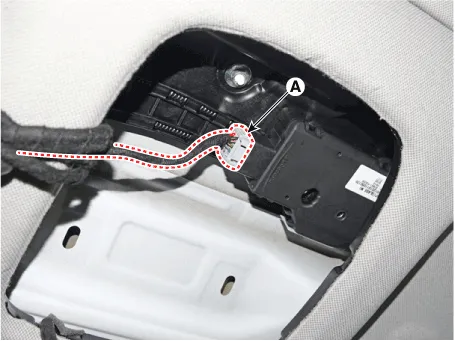

Disconnect the sunroof motor connector (A).

14.
Remove the rear window galss.
(Refer to "Windshield Glass")
15.

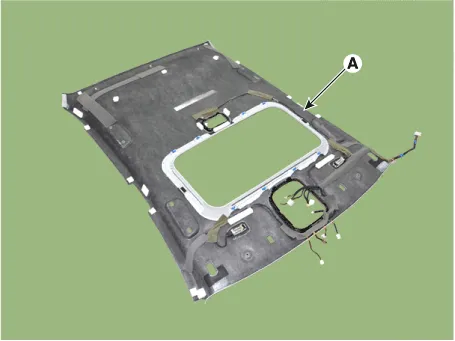

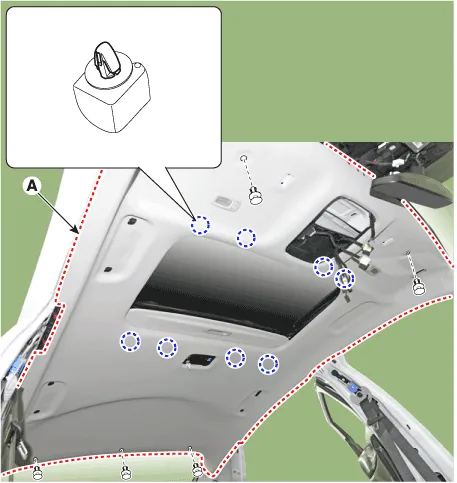

Remove the roof trim mounting clip and remove the roof trim assembly (A).

•
Be careful not to wrinkle on the roof trim.

16.
Remove roof trim wiring harness (A) from the roof trim.

•
Take care not to damage the roof trim wiring harness (A) when removing.


1)
When installing the roof trim wiring harness (A) on the roof trim, apply the hot melt continuously by using the hot melt gun tool.
2)
Put anti-noise pad on roof trim to prevent the noise.
17.
To install, reverse the removal procedure.

•
Make sure the connector is connected in properly.
•
Make sure the connector are connected in properly.
•
Replace any damaged clips (or pin - type retainers).
