Hyundai Elantra (CN7): Engine Electrical System / Specifications

Hyundai Elantra (CN7) 2021-2026 Service Manual / Engine Electrical System / Specifications

Specification
Ignition System
Ignition Coil
Item
Specification
Primary Coil Resistance (Ω)
0.75 ± 15% [20°C (68°F)]
Secondary Coil Resistance (kΩ)
5.9 ± 15% [20°C (68°F)]

Spark Plug
Item
Specification
Type
SILZKR8J8GS
Gap
0.7 - 0.8 mm
(0.0275 - 0.0314 in.)

Charging System
Alternator
Item
Specification
Rated voltage
13.5V, 130A
Speed in use
1,000 - 18,000 rpm
Voltage regulator
IC Regulator built-in type
Regulator Setting Voltage
External mode
10.6 - 16 ± 0.3V
Internal mode
14.55 ± 0.3V

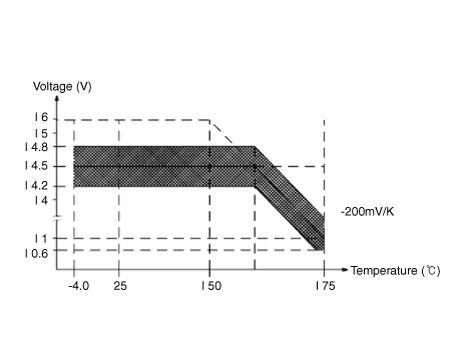

Temperature Gradient
External mode
0 ± 2 mV / °C
Internal mode
-3.5 ± 2mV / °C

Battery
â–¶CMF68L-DIN
Item
Specification
Model type
CMF68L-DIN
Capacity [20HR/5HR] (AH)
68 / 54
Cold Cranking Amperage (A)
760 (SAE / EN)
Reserve Capacity (Min)
110


•

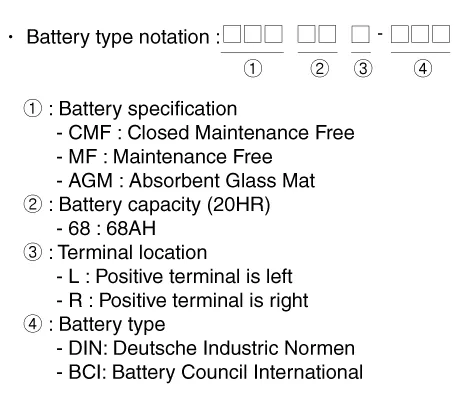

Model type description

•
Cold Cranking Ampere (CCA) : Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
–
The rating is the number of amps a new, fully charged battery can deliver at -18°C (-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
–
The higher the CCA rating, the greater the starting power of the battery.
•
RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
–
The rating is the number of minutes a battery at 26.7°C (80°F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
–
The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
Battery Sensor
Item
Speccification
Rated voltage (V)
12 - 14
Dark current (uA)
300
Pin
2 (B+, LIN)

Starting System
Starter
Item
Specification
Rated voltage
12V, 0.9kW
The number of pinion teeth
10
Performance
[No-load, 11V]
Ampere
83.6A
Speed
Min. 3500rpm

    TroubleshootingIgnition System Symptom Suspect Area Remedy Engine will not start or is hard to start (Cranks OK)Ignition lock switchInspect ignition lock switch, or replace as requiredIgnition coilInspect ignition coil, or replace as requiredSpark plugsInspect spark plugs, or replace as requiredIgnition wiring disconnected or brokenRepair wiring, or replace as requiredRough idle or stallsIgnition wiringRepair wiring, or replace as requiredIgnition coilInspect ignition coil, or replace as requiredEngine hesitates / poor accelerationSpark plugs and spark plug cablesInspect spark plugs / cable, or replace as requiredIgnition wiringRepair wiring, or replace as requiredPoor mileageSpark plugs and spark plug cablesInspect spark plugs / cable, or replace as requiredCharging System Symptom Suspect Area Remedy Charging warning indicator does not light with ignition switch "ON" and engine off.

    Special Service Tools Tool Name / Number Illustration Description Alternator pulley remover wrenchh09373-27000Removal and installation of alternator pulley
