Hyundai Elantra: Engine Control System / Components and components location

Hyundai Elantra (CN7) 2021-2023 Service Manual / Engine Control / Fuel System / Engine Control System / Components and components location

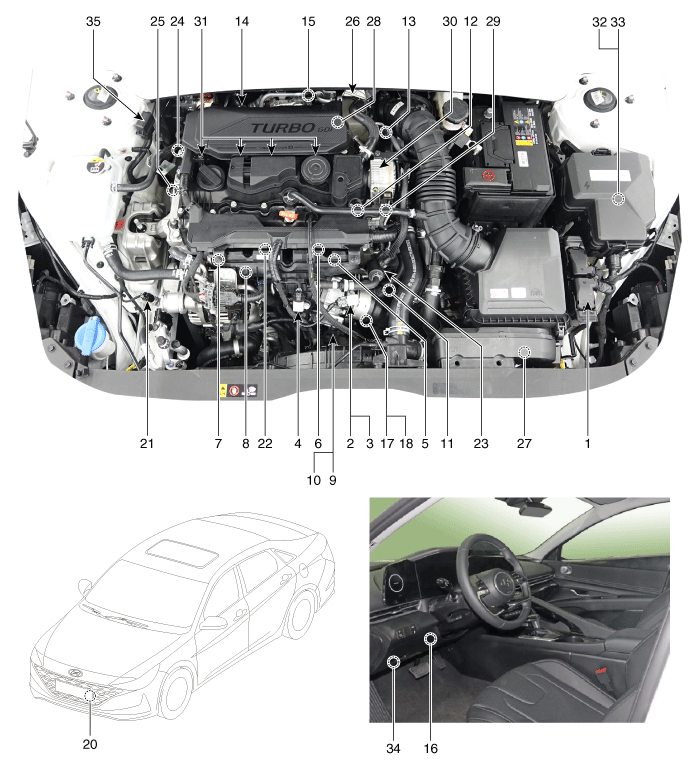

Components Location

1. Engine Control Module (ECM)

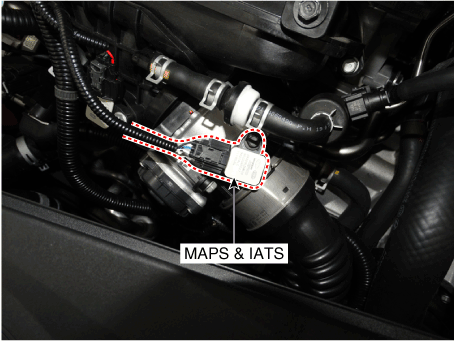

2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

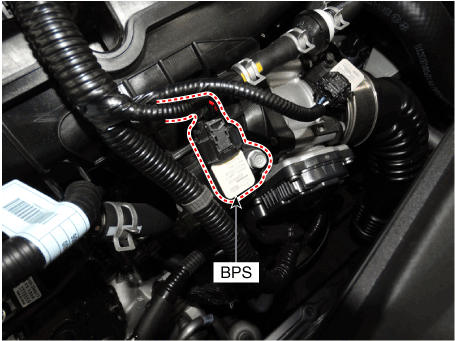

4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS) #1

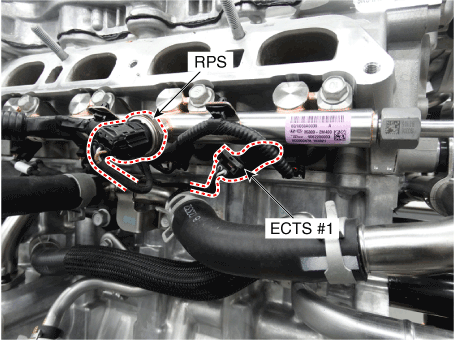

6. Rail Pressure Sensor (RPS)

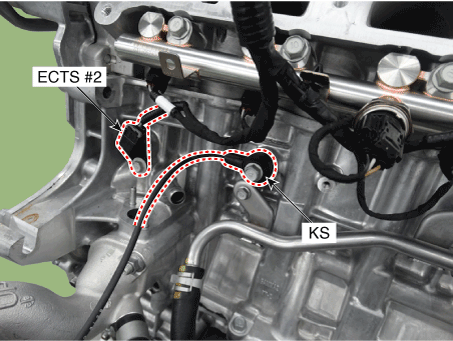

7. Engine Coolant Temperature Sensor (ECTS) #2
8. Knock Sensor (KS)

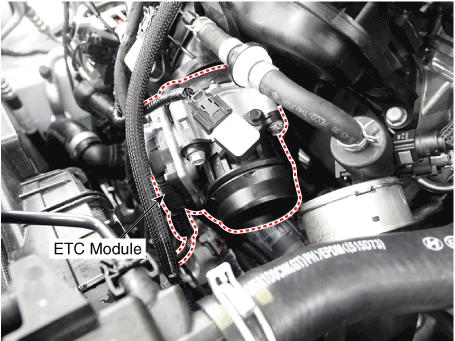

9. Throttle Position Sensor (TPS) [integrated into ETC Module]
10. ETC Motor [integrated into ETC Module]

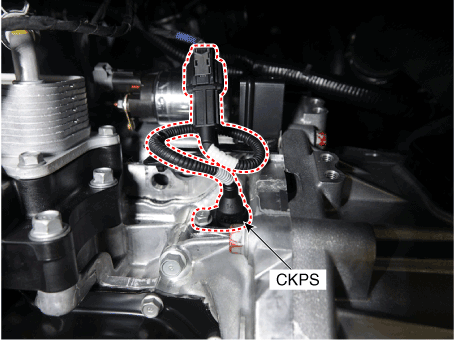

11. Crankshaft Position Sensor (CKPS)
12. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

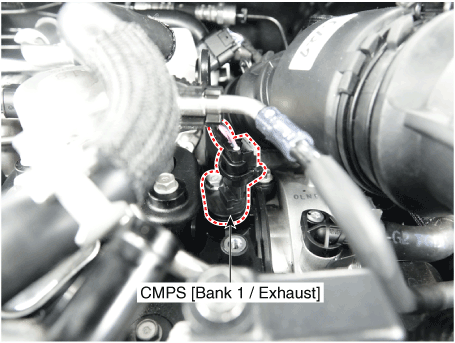

13. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
16. Accelerator Position Sensor (APS)
17. CVVT Oil Control Valve (OCV)

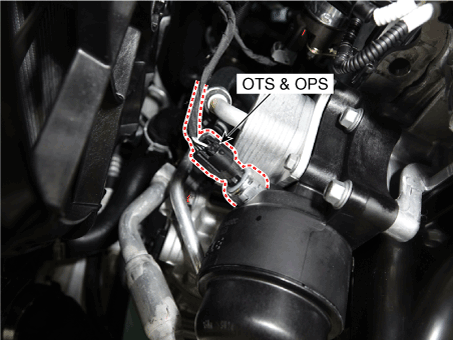

18. Oil Pressure Sensor (OPS)

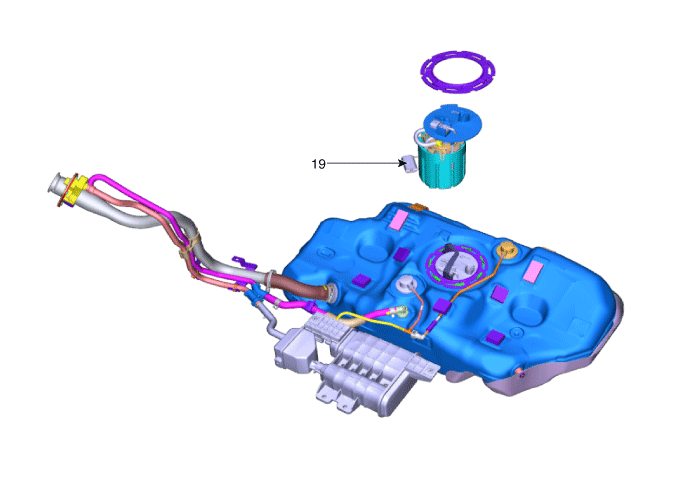

19. Fuel Level Sender (FLS)

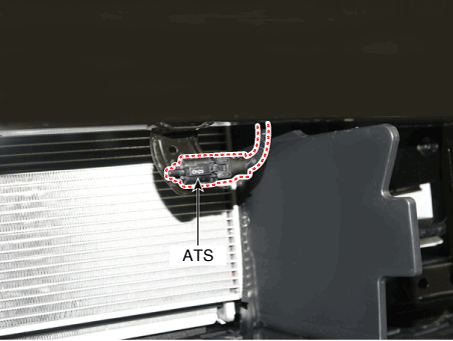

20. Air Temperature Sensor (ATS)
21. A/C Pressure Transducer (APT)

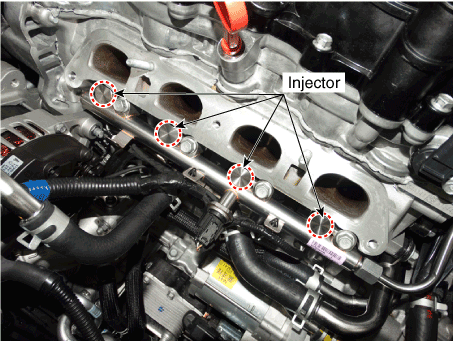

22. Injector

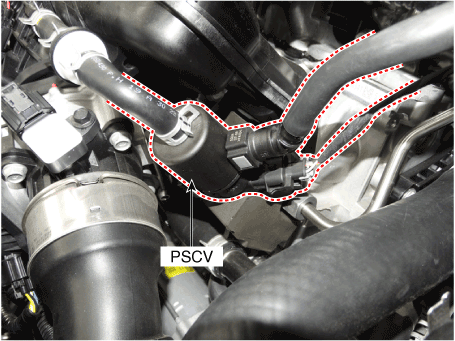

23. Purge Control Solenoid Valve (PCSV)

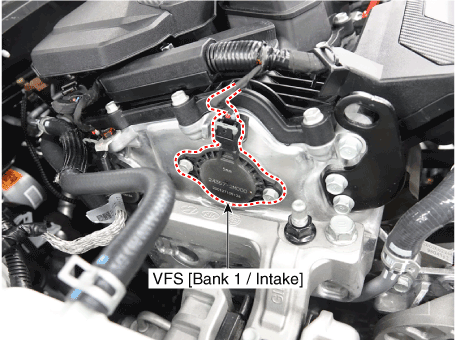

24. Variable Force Solenoid (VFS) [Bank 1 / Intake]
25. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]
26. Electric WGT Control Actuator (EWGA)

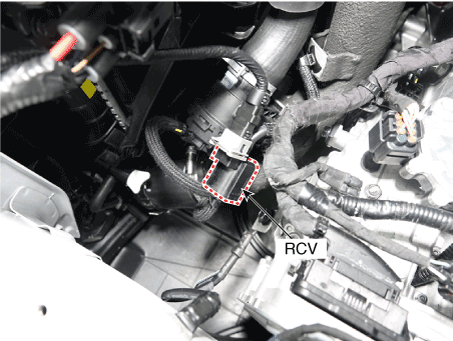

27. RCV Control Solenoid Valve

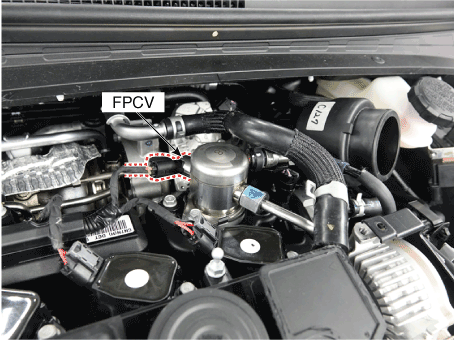

28. Fuel Pressure Control Valve (FPCV)

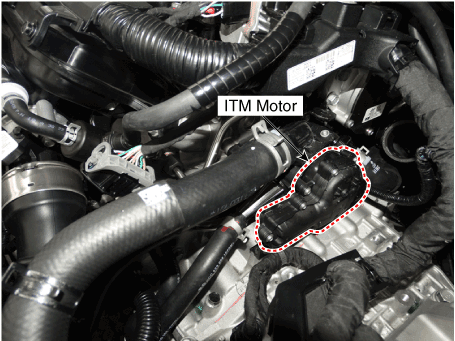

29. Integrated Thermal Mangement Module (ITM) Motor
30. CVVD Acturator

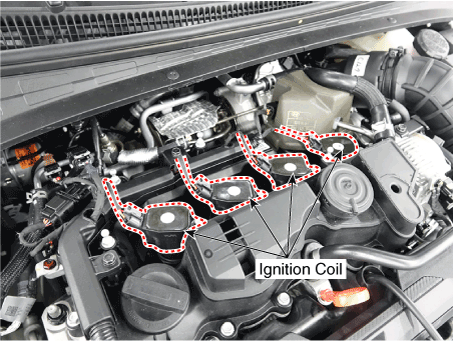

31. Ignition Coil

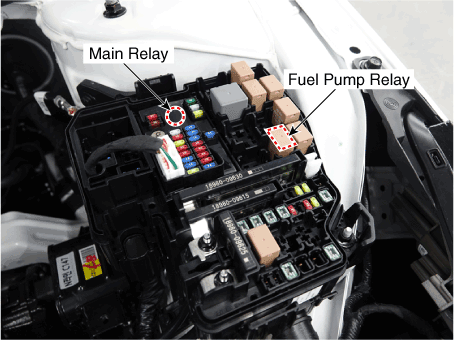

32. Main Relay
33. Fuel Pump Relay

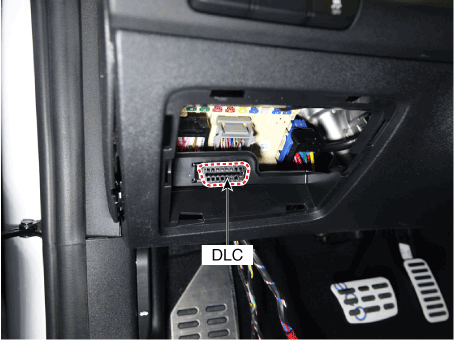

34. Data Link Connector (DLC)
35. Multi-Purpose Connector (MPCC)

1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS) #1
6. Rail Pressure Sensor (RPS)

7. Engine Coolant Temperature Sensor (ECTS) #2
8. Knock Sensor (KS)
9. Throttle Position Sensor (TPS) [integrated into ETC Module]
10. ETC Motor [integrated into ETC Module]

11. Crankshaft Position Sensor (CKPS)
12. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

13. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

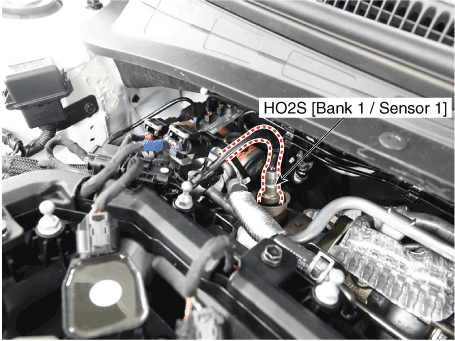

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

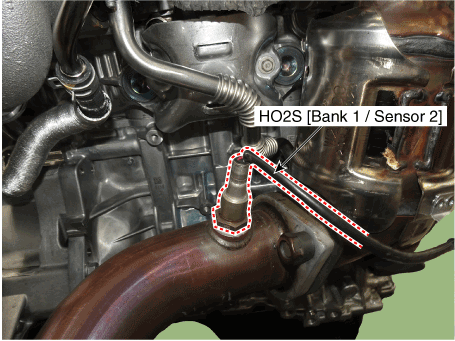

15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

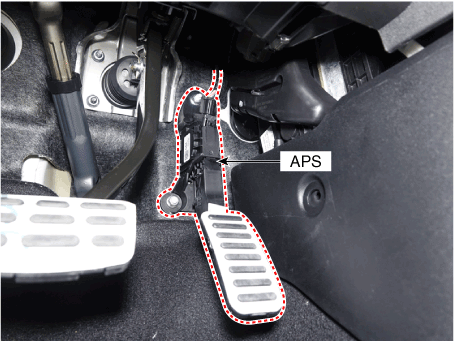

16. Accelerator Position Sensor (APS)

17. CVVT Oil Control Valve (OCV)
18. Oil Pressure Sensor (OPS)

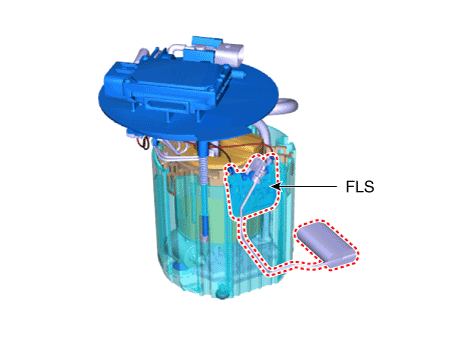

19. Fuel Level Sender (FLS)

20. Air Temperature Sensor (ATS)
21. A/C Pressure Transducer (APT)

22. Injector
23. Purge Control Solenoid Valve (PCSV)

24. Variable Force Solenoid (VFS) [Bank 1 / Intake]

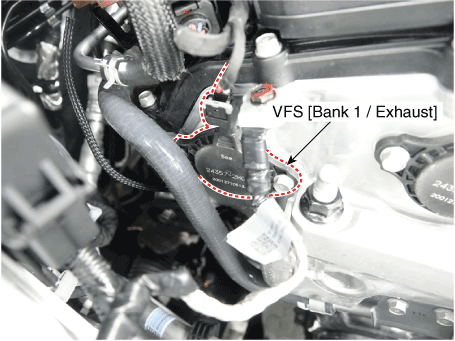

25. Variable Force Solenoid (VFS) [Bank 1 / Exhaust]

26. Electric WGT Control Actuator (EWGA)
27. RCV Control Solenoid Valve

28. Fuel Pressure Control Valve (FPCV)
29. Integrated Thermal Mangement Module (ITM) Motor

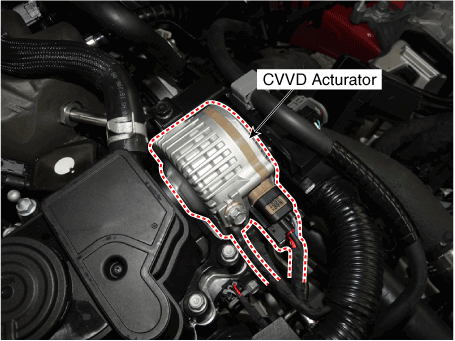

30. CVVD Acturator
31. Ignition Coil

32. Main Relay
33. Fuel Pump Relay
34. Data Link Connector (DLC)

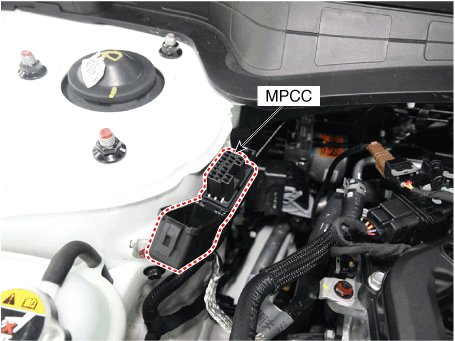

35. Multi-Purpose Connector (MPCC)



    Description and operation

    DescriptionIf the Gasoline Engine Control system components (sensors, ECM, injector, etc.) fail, interruption to the fuel supply or failure to supply the proper amount of fuel for various engine operating conditions will result...

    Engine Control Module (ECM)

    Schematic diagrams ECM Terminal And Input/Output signalECM Terminal FunctionConnector [A] Pin No Description 1Fuel Pressure Control Valve (FPCV) [High] control2Integrated Thermal Mangement Module (ITM) Motor (+)3Integrated Thermal Mangement Module (ITM) Motor (-)4-5Engine Coolant Temperature Sensor (ECTS) #1 (Ground)6-7Engine Coolant ..
