Hyundai Elantra: Steering Wheel (Heated Steering Wheel) / Components and components location

Hyundai Elantra (CN7) 2021-2025 Service Manual / Steering System / Steering Wheel (Heated Steering Wheel) / Components and components location

Components

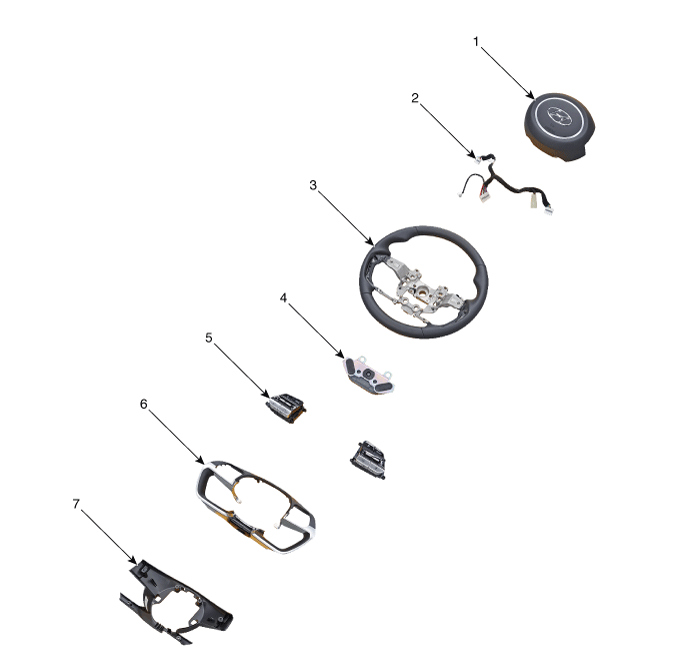

[G 1.6 MPI / LPI]

1. Drive air bag module (DAB)
2. Wiring
3. Steering wheel
4. Damper

5. Remote control switch
6. Switch bezel
7. Lower cover

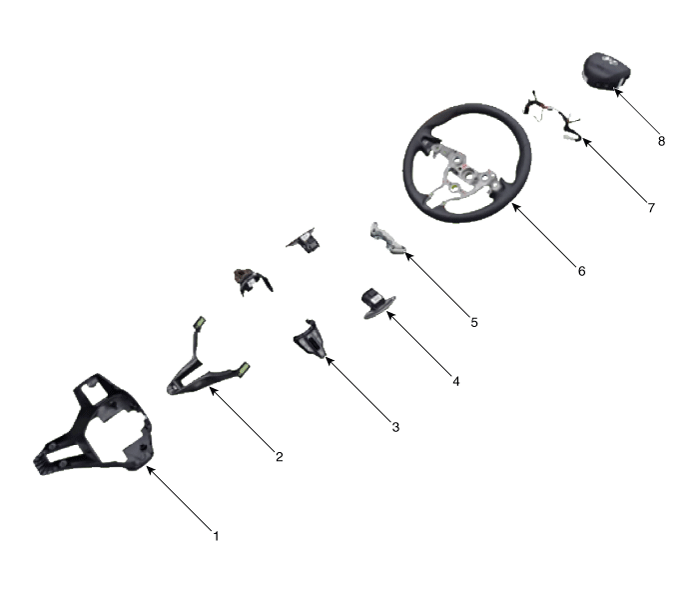

[G 1.6 T-GDI]

1. Lower cover
2. Switch bezel
3. Remote control switch
4. Paddle shift

5. Damper
6. Steering wheel
7. Wiring
8. Drive air bag module (DAB)

Steering Wheel (Heated Steering Wheel)

Repair procedures

Removal1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.2.Turn the steering wheel so that the front wheels can face straight ahead...
