Removal
1.
Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2.
Turn the steering wheel so that the front wheels can face straight ahead.
3.
Remove the drive airbag module.
(Refer to Restraint - "Drive Air Bag Module")
4.

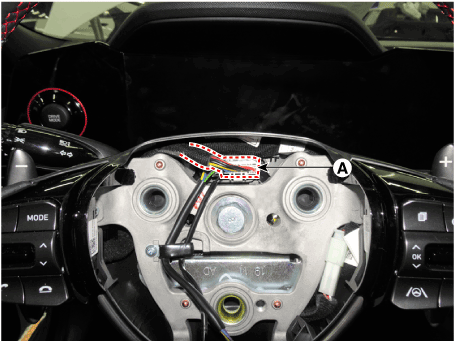

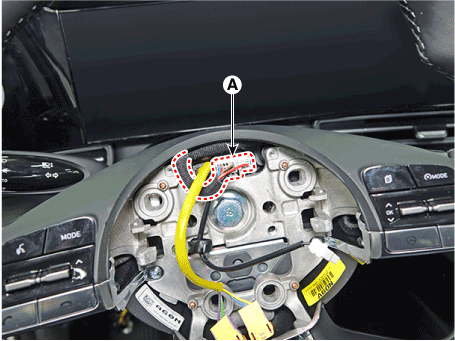

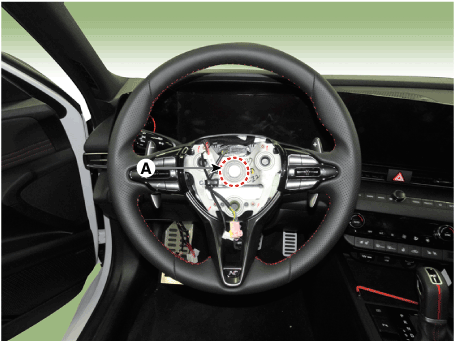

Disconnect the steering wheel connector (A).
[G 1.6 MPI / LPI]

[G 1.6 T-GDI]

5.

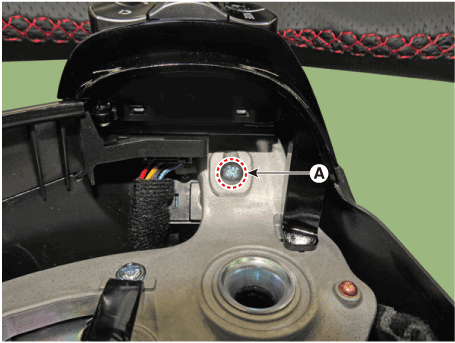

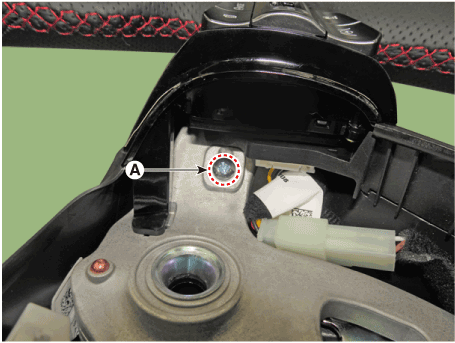

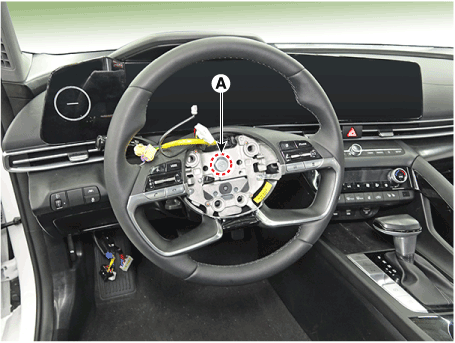

Remove the steering wheel after loosening the steering wheel lock bolt (A).
Tightening torque :
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)
[G 1.6 MPI / LPI]

[G 1.6 T-GDI]


•
Do not use the hammer for disconnecting on the steering column not to damage the steering column.
•
Do not reuse the steering lock bolt.
•

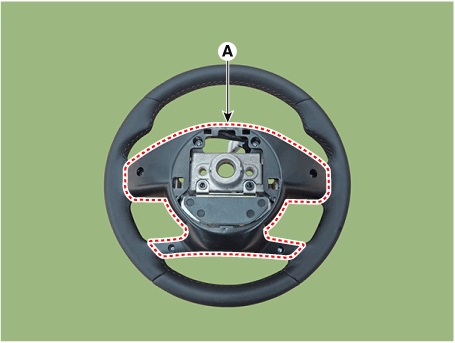

When assembling, match the gear teeth as the below illustration.
Installation
1.
Install in the reverse order of removal.
Disassembly
[G 1.6 MPI / LPI]
1.

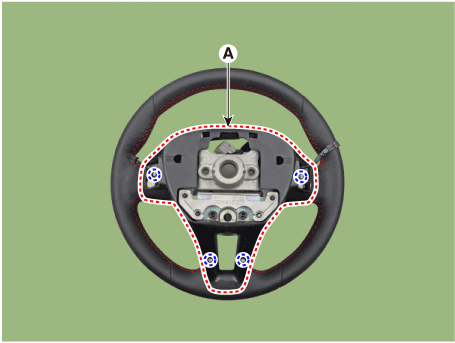

Remove the lower cover (A) after loosening the screw.

2.
Disconnect the remote control switch connector (A).
[LH]

[RH]

3.

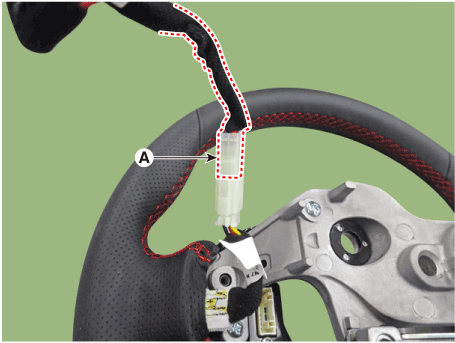

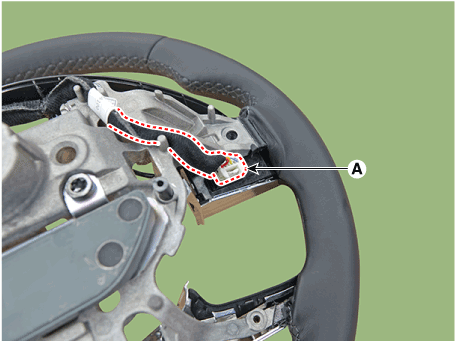

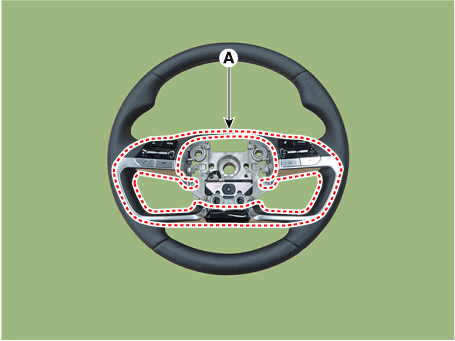

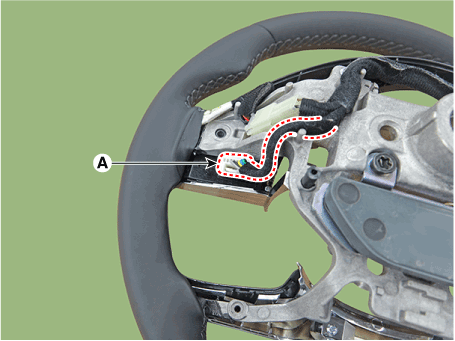

Remove the wiring after disconnecting the heated steering wheel connector (A).

4.

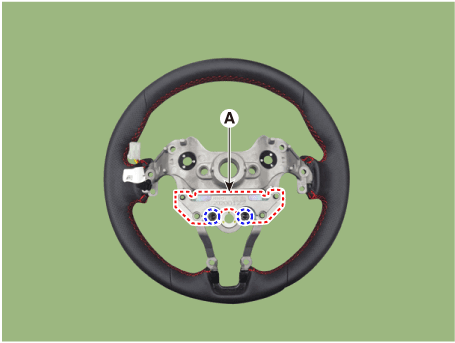

Remove the switch bezel (A) after loosening screw.

5.

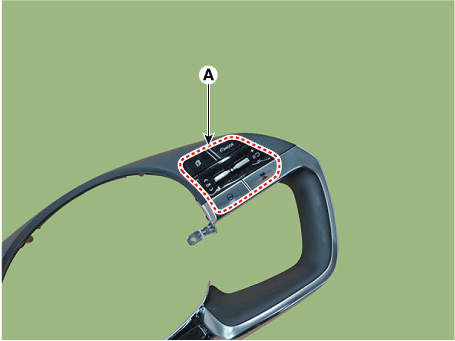

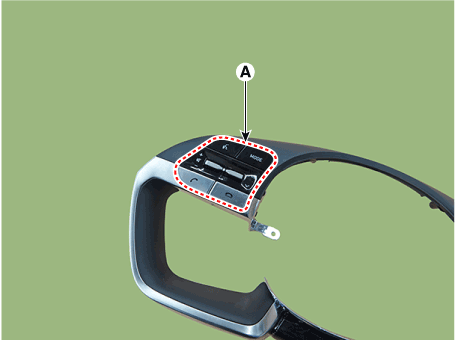

Remove the remote control switch (A) after loosening the screw.
[LH]

[RH]

6.

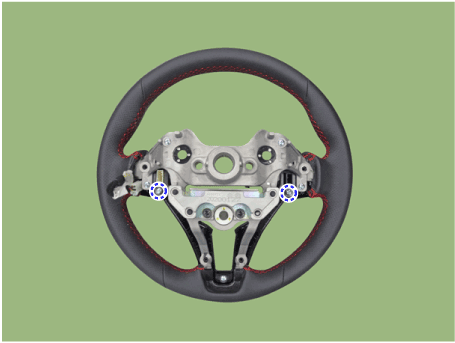

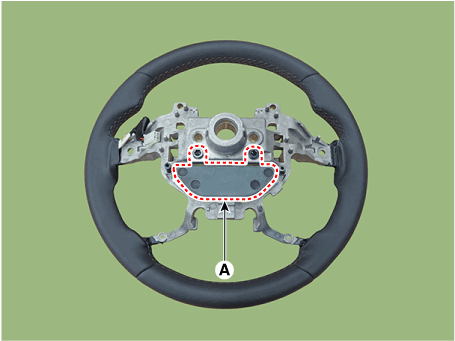

Remove the steering wheel damper (A) after loosening the mounting bolts.

[G 1.6 T-GDI]
1.

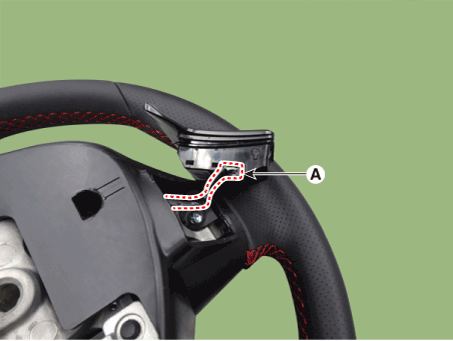

Loosen the Paddle shift mounting screw (A).
[LH]

[RH]

2.

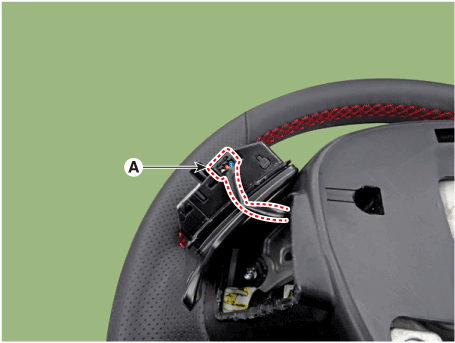

Disconnect the Paddle shift connector (A).
[LH]

[RH]

3.

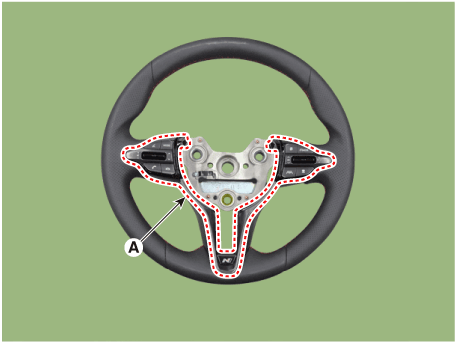

Remove the lower cover (A) after loosening the mounting screw.

4.

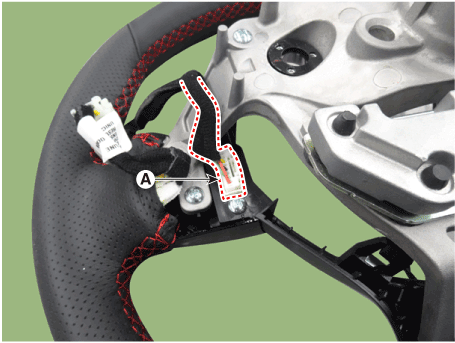

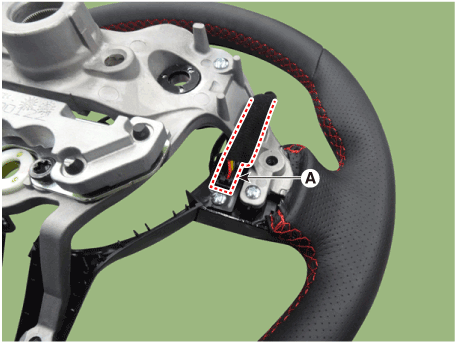

Disconnect the remote control switch connector (A).
[LH]

[RH]

5.

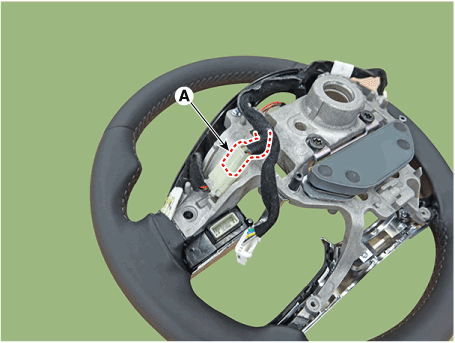

Remove the wiring after disconnecting the heated steering wheel connector (A).

6.
Remove the switch bezel & remote control switch (A) after loosening the mounting screw.

7.
Remove the steering wheel damper (A) after loosening the mounting bolts.

Reassembly
1.
To reassembly, reverse the disassembly procedure.
