Hyundai Elantra (CN7): Fender / Components and components location

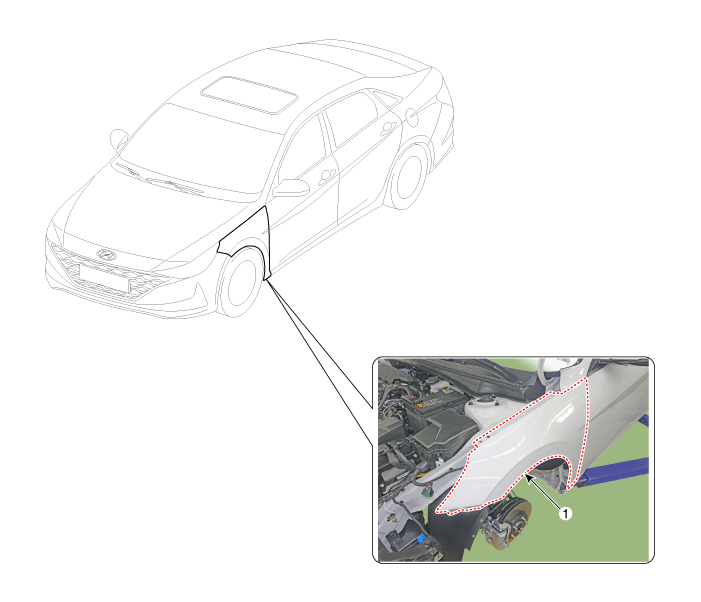

| Component Location |
| 1. Fender assembly |
Replacement • When removing the fender, wrap protective tape around a screwdriver or remover not to damage components• Put on gloves to prevent hand injuries1.
