Hyundai Elantra: Power Door Locks / Components and components location
Hyundai Elantra (CN7) 2021-2025 Service Manual / Body Electrical System / Power Door Locks / Components and components location

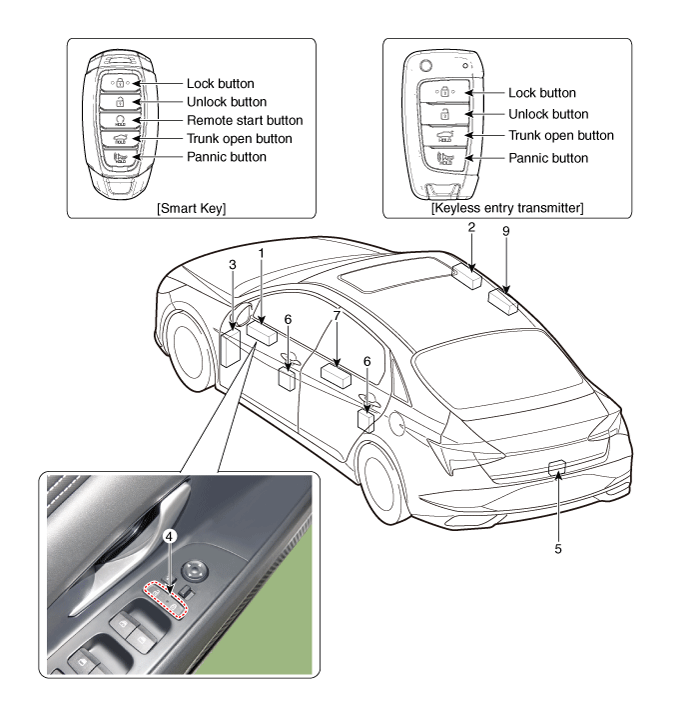

| Component Location |
| 1. DDM (Driver Door Module) 2. ADM (Assist Door Module) 3. Integrated Central Control Unit (ICU) 4. Door lock knob 5. Trunk lid actuator | 6. Door latch module 7. Door lock/unlock switch 8. RLDM (Rear Left Door Module) 9. RRDM (Rear Right Door Module) |
Power Door Lock Module
Components and components location
Conponents1. Door latch assembly2. Door latch cable
Repair procedures
Inspection
•
Wrap the protective tape on the tool to disassemble with the screwdriver or remover...
