Hyundai Elantra: Power Door Locks / Power Door Lock Module
Components and components location

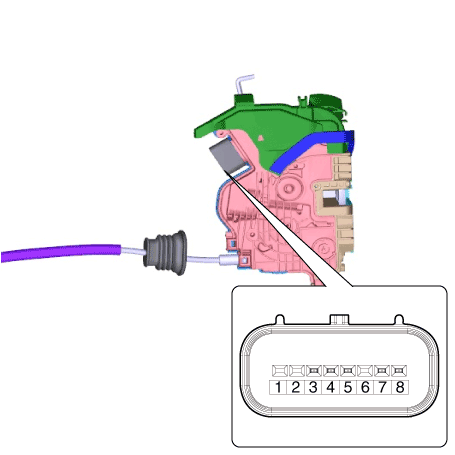

1. Door latch assembly
| 2. Door latch cable
|
Repair procedures
•
| Wrap the protective tape on the tool to disassemble with the screwdriver or remover. |
•
| Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil. |
|
Front Door Lock Module Inspection
1. | Remove the front door trim. (Refer to Body - "Front Door Trim") |
2. | Remove the front door module. (Refer to Body - "Front Door Module") |

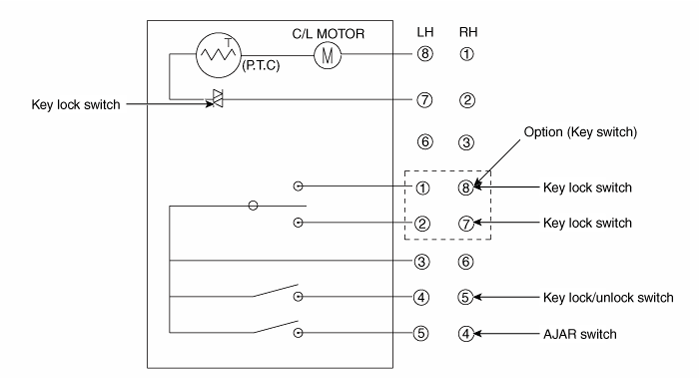

3. | Disconnect the connector from the actuator.
No
| Pin Information
| LH
| RH
| 1
| Key Lock switch
| CL motor
| 2
| Key Unlock switch
| COM motor
| 3
| COM
| -
| 4
| Lock / Unlock switch
| AJAR switch
| 5
| AJAR switch
| Lock / Unlock switch
| 6
| -
| COM
| 7
| COM motor
| Key Unlock switch
| 8
| CL motor
| Key Lock switch
|
|

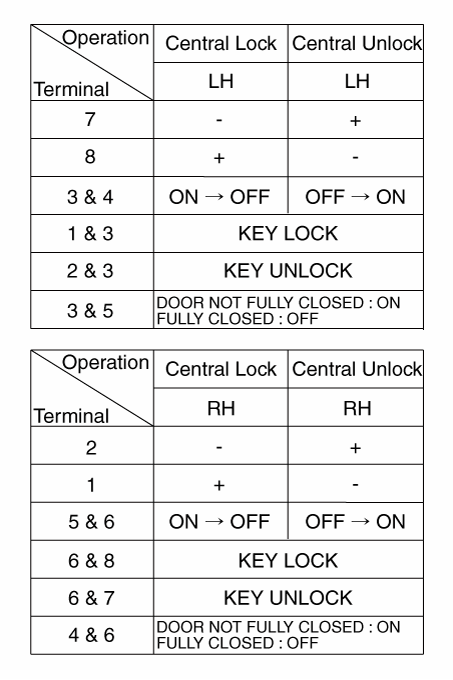

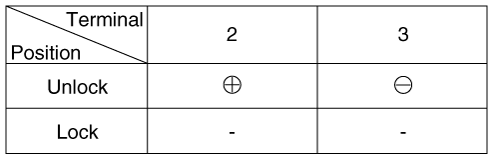

4. | Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

|
Rear Door Lock Module Inspection
1. | Remove the rear door trim. (Refer to Body - "Rear Door Trim") |
2. | Remove the rear door module. (Refer to Body - "Rear Door Module") |

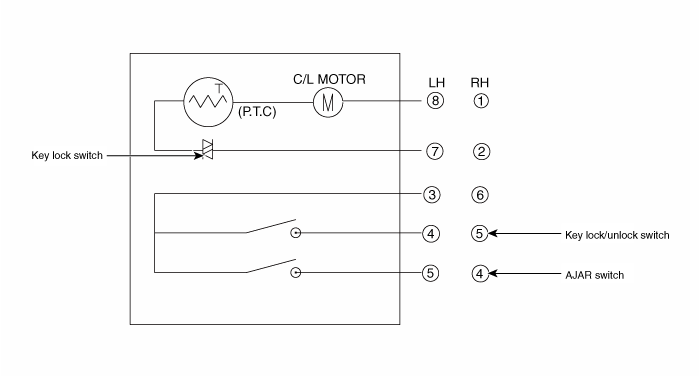

3. | Disconnect the connectors from the actuator.
No
| Pin information
| LH
| RH
| 1
| -
| CL motor
| 2
| -
| COM motor
| 3
| COM
| -
| 4
| Lock / Unlock switch
| AJAR switch
| 5
| AJAR switch
| Lock / Unlock switch
| 6
| -
| COM
| 7
| COM motor
| -
| 8
| CL motor
| -
|
|

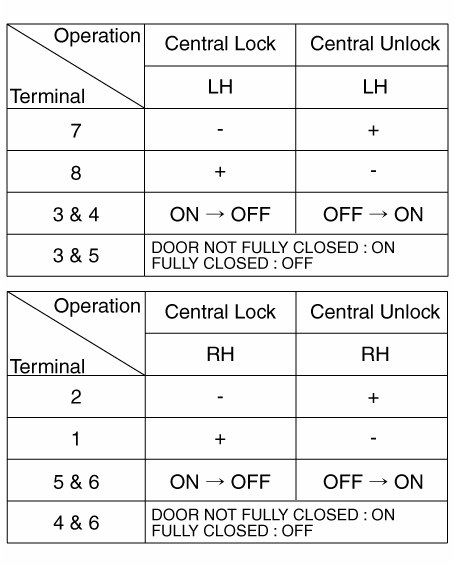

4. | Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

|
Tailgate Lock Module Inspection
1. | Remove the trunk lid trim. (Refer to Body - "Trunk Lid Trim") |

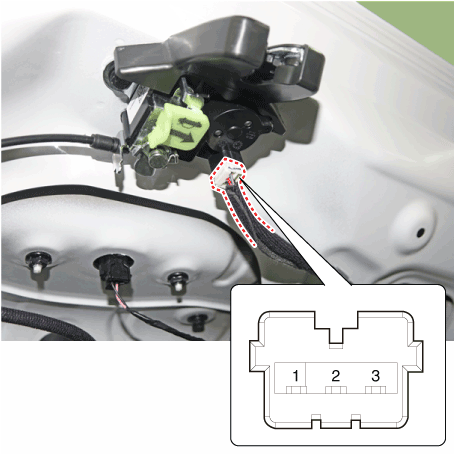

2. | Disconnect the connector from the actuator
|

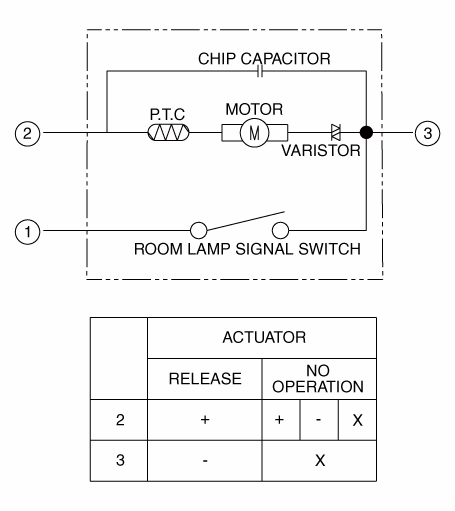

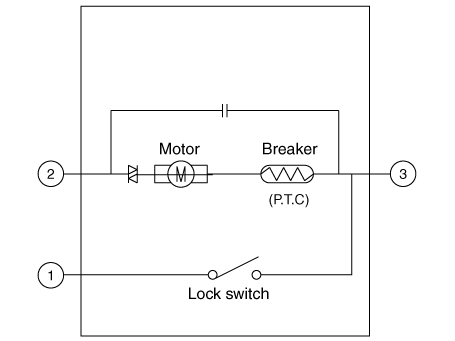

3. | Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.


|
4. | Checking the trunk of the vehicle power option power refers to the trunk module. |
