Hyundai Elantra: Rear Door / Rear Door Inside Handle

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Inside Handle

Repair procedures

Replacement

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

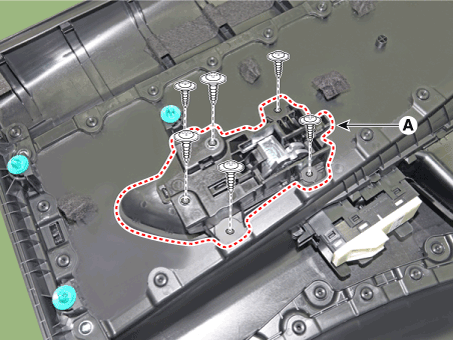

2.	After loosening the mounting screws, remove the rear door inside handle (A).

To install, reverse the removal procedure.

•	Make sure the door locks / unlocks and opens / closes properly.

•	Replace any damaged clips (or pin - type retainers).
