Hyundai Elantra (CN7): Rear Door / Rear Door Window Glass

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Window Glass

Components and components location

Component Location

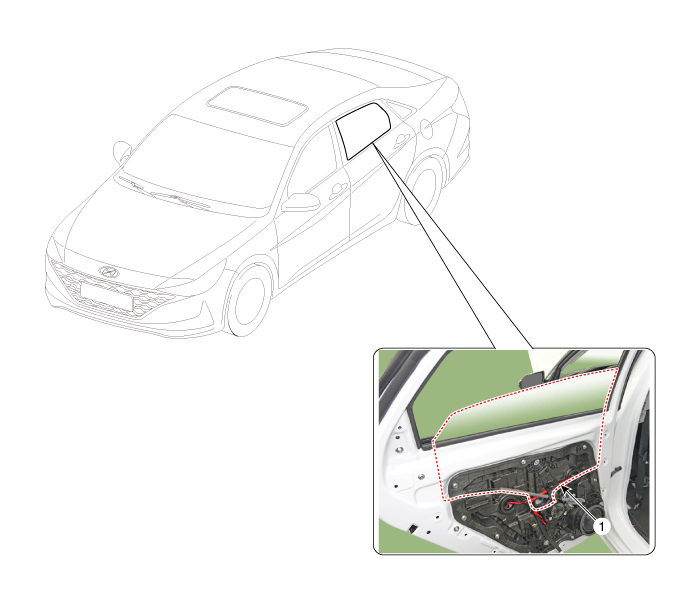

1. Rear door window glass


Repair procedures

zReplacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

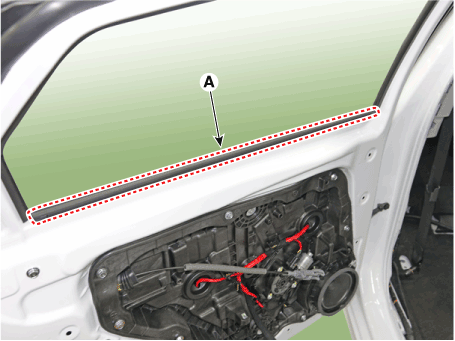

Remove the rear door belt inside weatherstrip (A).

3.

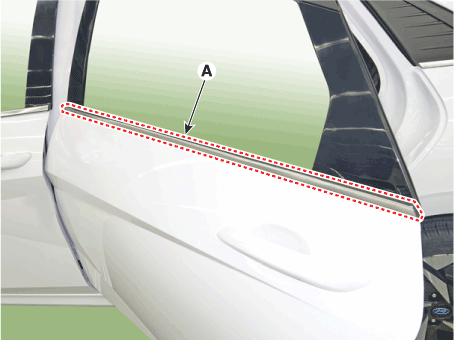

Remove the rear door belt outside weatherstrip (A).

4.

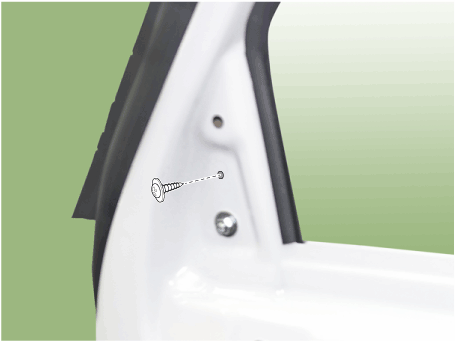

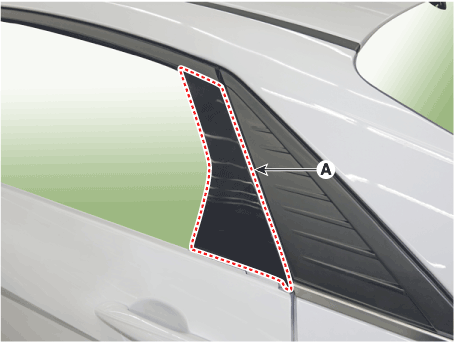

Loosen the mounting screw, remove the rear door frame garnish (A).

5.

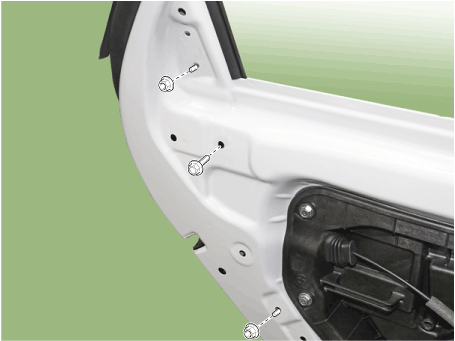

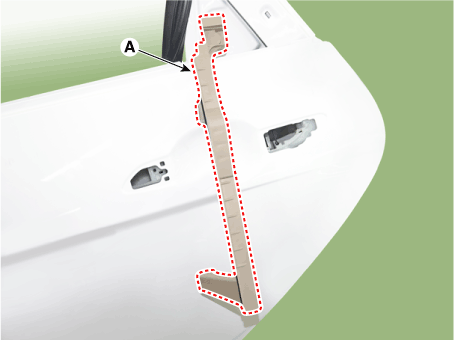

Loosen the mounting bolt and nuts, remove the rear door channel (A).

6.

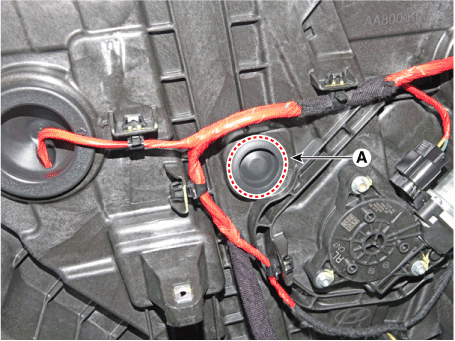

Remove the rear door window glass mounting hole plug (A).

7.

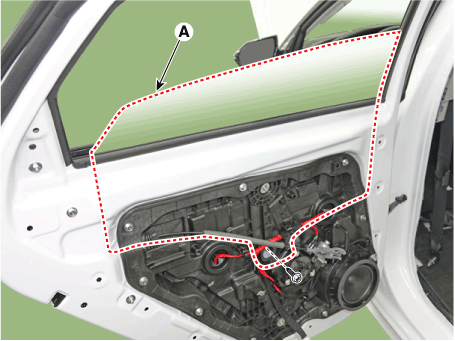

Carefully adjust the rear door window glass (A) until the bolts are visible, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening torque :
5.9 - 8.8 N.m (0.6 - 0.9 kgf.m, 4.3 - 6.5 lb-ft)


•
Be careful not to drop the glass and/or scratch the glass surface.
8.
To install, reverse the removal procedure.

•
Make sure that the glass rolls up and down smoothly.
•
Adjust glass position as needed.
•
Make sure the door locks and opens properly.
•
Replace any damaged clips (or pin - type retainers).
