Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim

Components and components location
Component Location

1. Rear door trim


Repair procedures
Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

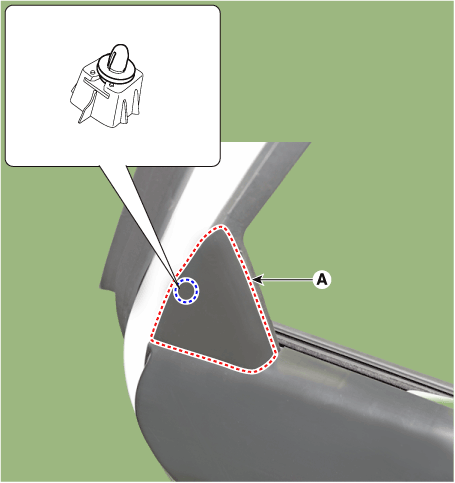

Using a screwdriver or remover, remove the rear door delta inner cover (A).

2.

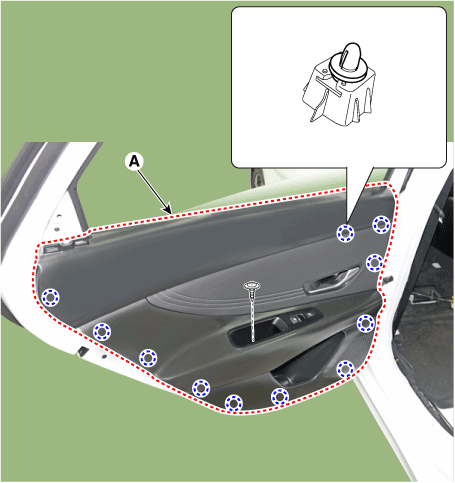

After loosening the mounting screws, remove the rear door trim (A).

3.
Remove the rear door inside handle cage (A).

4.

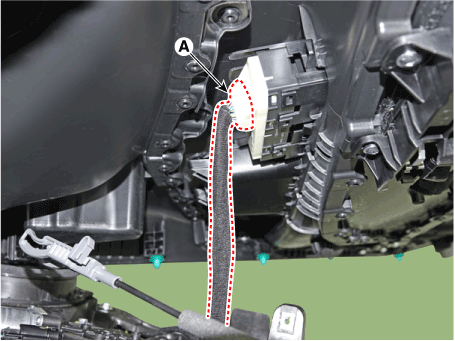

Disconnect the power window switch connector (A).

5.
To install, reverse the removal procedure.

•
Be sure to replace the clip (fastener) when re-installing after detaching the door trim.
※ In case of non-exchange, watertightness / exit problems may occur
Water tightness prevention


•
Make sure the connector is connected properly.
•
Make sure the door locks / unlocks and opens / closes properly.
•
Replace any damaged clips (or pin-type retainers).
•
Make sure the glass is operated properly.

    Repair procedures

    AdjustmentGlass Adjustment    • Check the glass run channel for damage or deterioration, and replace them if necessary...

    Rear Door Inside Handle

    Repair procedures Replacement1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")2.After loosening the mounting screws, remove the rear door inside handle (A)...
