Hyundai Elantra: Driving Safety / Forward Collision–Avoidance Assist (FCA) (front view camera only)

Hyundai Elantra (CN7) 2021-2023 Owner's Manual / Driver assistance system / Driving Safety / Forward Collision–Avoidance Assist (FCA) (front view camera only)

Basic function

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or detect a pedestrian in the roadway and warn the driver that a collision is imminent with a warning message and audible warning, and if necessary, apply emergency braking.

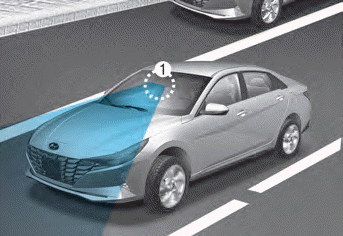

Detecting sensor

[1] : Front view camera

Refer to the picture above for the detailed location of the detecting sensor.

CAUTION

Take the following precautions to maintain optimal performance of the detecting sensor:

  • NEVER disassemble the detecting sensor or sensor assembly, or apply any impact on it.
  • If the detecting sensor have been replaced or repaired, we recommend that you have your vehicle inspected by an authorized HYUNDAI dealer.
  • NEVER install any accessories or stickers on the front windshield, or tint the front windshield.
  • Pay extreme caution to keep the front view camera dry.
  • NEVER place any reflective objects (i.e. white paper, mirror) over the dashboard. Any light reflection may prevent the system from functioning properly.
