Hyundai Elantra: Forward Collision–Avoidance Assist (FCA) (front view camera only) / Function disabled
.png)
When the front windshield where the front view camera is located or the sensor is covered with foreign material, such as snow or rain, it can reduce the detecting performance and temporarily limit or disable Forward Collision- Avoidance Assist.

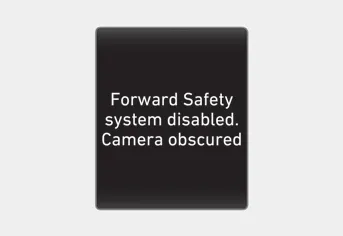

If this occurs the ‘Forward Safety system
disabled. Camera obscured’ warning
message, .png)
and
.png)
the and warning
lights will illuminate on the cluster.
The system will operate normally when such snow, rain or foreign material is removed.
If the system does not operate normally after obstruction (snow, rain, or foreign material) is removed, we recommend that the system be inspected by an authorized HYUNDAI dealer.
WARNING
- Even though the warning message or warning light does not appear on the cluster, Forward Collision-Avoidance Assist may not properly operate.
- Forward Collision-Avoidance Assist may not properly operate in an area (e.g. open terrain), where any substance are not detected after turning ON the engine.
Function malfunction and
limitations
Function malfunction
When Forward Collision-Avoidance
Assist system is not working properly,
the ‘Check Forward Safety system(s)’
warning message will appear, and the
and
warning lights will illuminate
on the cluster...
Limitations of the function
Forward Collision-Avoidance Assist may
not operate normally, OR the function
may operate unexpectedly under the
following circumstances:
The detecting sensor or the
surroundings are contaminated or
damaged
The temperature around the front
view camera is high or low
The camera lens is contaminated due
to tinted, filmed or coated windshield,
damaged glass, or stuck of foreign
mate..
