Hyundai Elantra: Fuel Delivery System / Fuel Pressure Regulator
Hyundai Elantra (CN7) 2021-2024 Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Regulator
Repair procedures

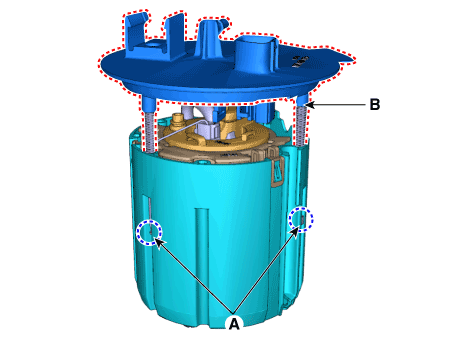

| Removal |
| 1. | Remove the fuel pump. (Refer to Fuel Delivery System - "Fuel Pump") |
| 2. | Disconnect the fuel pump motor connector (A) and fuel sender connector (B).
|

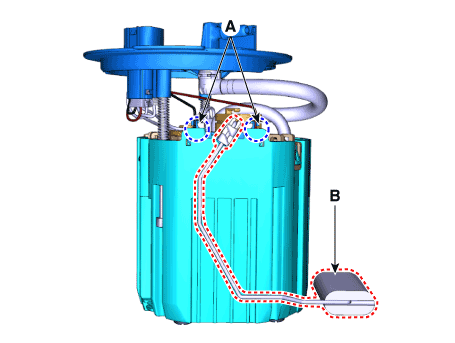

| 3. | Release the fixing hook (A) and then remove the fuel sender (B).
|

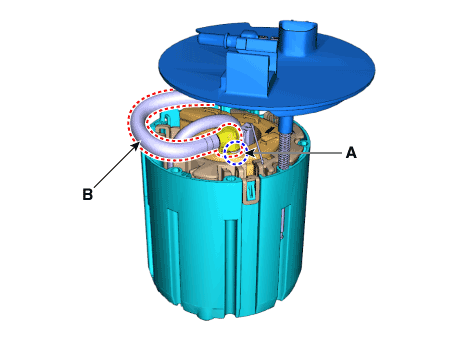

| 4. | Remove the fixing clip (A) and then disconnect the fuel feed tube (B).
|

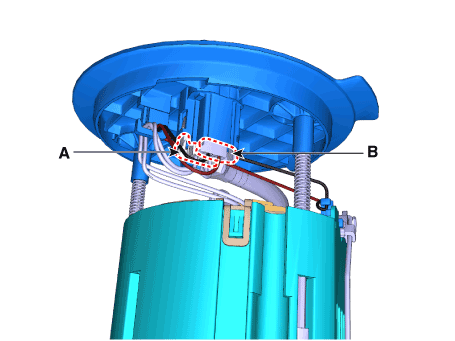

| 5. | Remove the fixing clip (A) and then remove the head assembly (B).
|

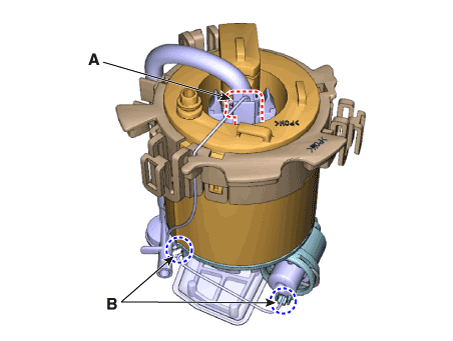

| 6. | Release the fixing hook (A) and then remove the reservoir-cup (B).
|
| 7. | Disconnect the fuel pump motor connector (A). |
| 8. | Disconnect the ground cable (B).
|

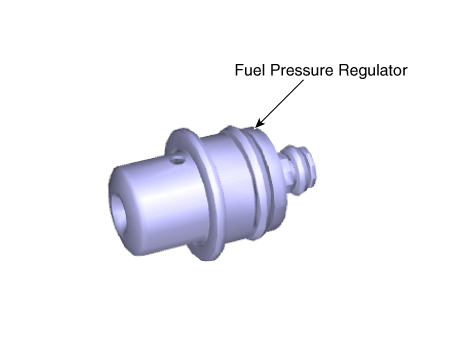

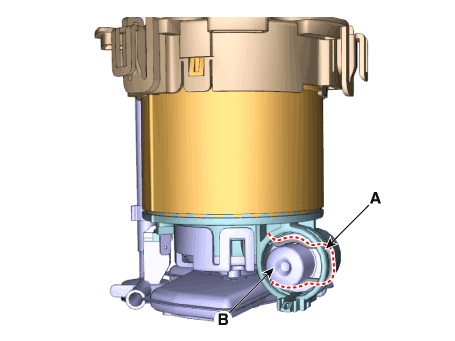

| 9. | Remove the fixing clip (A) and then disconnect the fuel pressure regulator (B).
|
| Installation |
| 1. | Install in the reverse order of removal. |
