Hyundai Elantra: Identification Numbers / General information

Identification Number

Identification Number Description

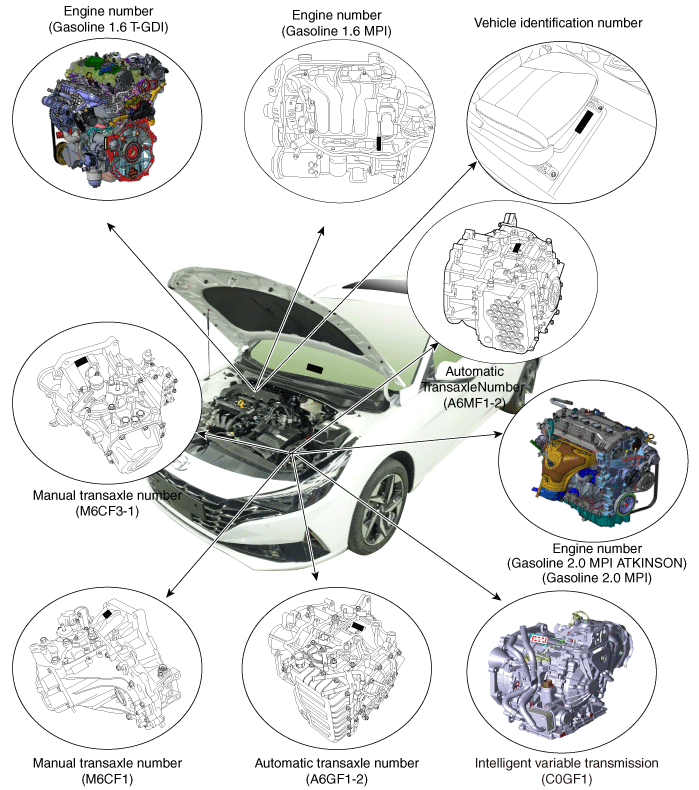

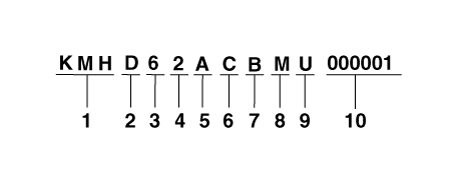

Vehicle Identification Number

1.
World Manufacturer Identifier (WMI)
- KMF : Commercial vehicle (Van)
- KMH : Passenger vehicle or MPV(Multipurpose Passenger Vehicle)/SUV(Sports Utility Vehicle)/RV(Recreational Vehicle)
- KMJ : Van
- KM8 : MPV/SUV/RV (For U.S.A, Canada, Mexico only)
2.
Vehicle line
- L : CN7
3.
Model & Series
- L : Low grade (L)
- M : Middle-Low grade (GL)
- N : Middle grade (GLS, JSL, TAX)
- P : Middle-High grade (HGS)
- R : High grade (TOP)
- S : Premium GL grade (PGL)
- T : Super HGSL grade (SGH)
4.
Body/Cabin type, Gross Vehicle Weight Rating
KMF (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
KMH
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KMJ
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
KM8
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
5.
Restraint system, Brake system
KMH, KM8
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
Code
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
A
°
°
°
×
×
°
×
×
°
°
×
B
°
°
°
×
×
×
×
×
×
×
×
C
°
°
°
×
×
°
×
×
°
°
°
D
°
°
°
×
×
°
°
×
°
°
×
E
°
°
×
×
×
×
×
×
×
×
×
F
°
°
°
×
×
°
×
×
×
×
×
N
°
×
×
×
×
×
×
×
×
×
×

KMJ
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
KMF
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
Code
Restraint system
Brake system
Seat belt
Front air bag
Knee air bag
Side air bag
Curtain air bag
Hydrauric
Pneumatic
Mixed
Driver's
Passenger's
Driver's
Passenger's
1st row
2nd row
3rd row
1st row
2nd row
3rd row
X
°
×
×
×
×
×
×
×
×
×
×
°
-
-
V
°
°
×
×
×
×
×
×
×
×
×
°
-
-
W
°
°
°
×
×
×
×
×
×
×
×
°
-
-

6.
Engine type
- B : Gasoline Engine (GAMMA G 1.6 MPI)
- E : Gasoline Engine (GAMMA II G 1.6 MPI)
- F : Gasoline Engine (GAMMA II G 1.6 T-GDI)
- G : Gasoline Engine (NU G 2.0 MPI)
7.
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Reducer
- G : LHD & DCT
- H : LHD & DCT + Transfer
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Reducer
- V : RHD & DCT
- W : RHD & DCT + Transfer
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, ×
8.
Model year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
9.
Plant of production
A : Asan (Korea)
B : Beijing (China)
C : Cheonju (Korea)
H : Alabama (U.S.A)
M : Chennai (India)
U : Ulsan (Korea)
Z : Izmit (Turkey)
J : Ostrava (Czech)
P : Piracicaba (Brazil)
10.
Vehicle production sequence number
000001 ~ 999999
Paint Code
Code
Color
NKA
Phantom Black
A5G
Amazon Gray
C5G
Cyber Gray
USS
Gray (electric shadow)
M6T
Fluid metal
WAW
Pola White
PR2
Fiery Red
YR2
lava orange
YP5
Intense Blue

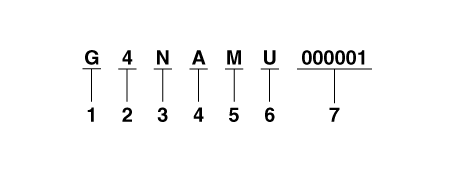

Engine Number

1.
Engine fuel
- G : Gasoline
2.
Engine range
- 4 : 4 cycle 4 cylinder
3.
Engine development order and capacity
- F : GAMMA engine (Gasoline)
- N : NU engine (Gasoline)
4.
Engine Capacity
- G : 1591cc (Gasoline 1.6 MPI)
- M : 1598cc (Gasoline 1.6 MPI)
- L : 1999cc (Gasoline 2.0 MPI)
- P : 1598cc (Gasoline 1.6 T-GDI)
5.
Production Year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
6.
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
7.
Engine production sequence number
- 000001 ~ 999999
Transaxle Number
Automatic (A6MF1-2)

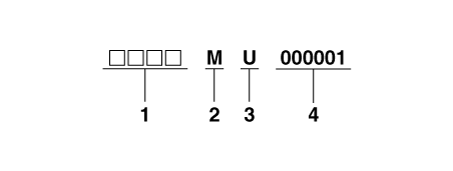

1.
Model
- RB : A6MF 1-2
2.
Model year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Final gear ratio
- R : 3.270
4.
Detailed classification
- G : Gasoline 2.0 MPI
5.
Plant of production
- 2 : Powertech Plant2
- 4 : Powertech Plant4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- N : Ulsan Plant 3
- H : Hwasung
6.
Transaxle production sequence number
- 000001 ~ 999999

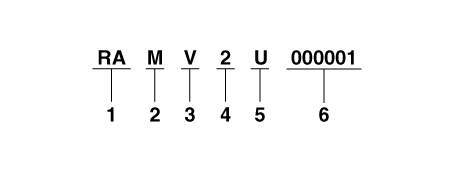

Automatic (A6GF1-2)

1.
Model
- RA : A6GF 1-2
2.
Model year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Final gear ratio
- V : 3.612
4.
Detailed classification
- 2 : Gasoilne 1.6 MPI
5.
Plant of production
- 2 : Powertech Plant2
- 4 : Powertech Plant4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- N : Ulsan Plant 3
- H : Hwasung
6.
Transaxle production sequence number
- 000001 ~ 999999
Manual (M6CF1)

1.
Assembly code of plant
2.
Model year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Plant of production
- H : Hwasung (Korea)
- U : Ulsan (Korea)
- W : Wia
4.
Transaxle production sequence number
- 000001 ~ 999999

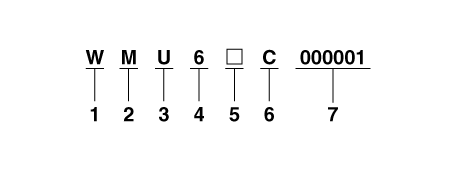

Manual (M6CF3-1)

1.
Model
- W : M6CF3-1
2.
Model year
- L : 2020, M : 2021, N : 2022, P : 2023, R : 2024 .......
3.
Plant of production
- U : Ulsan
- H : Hwasung
4.
Speed
- 6 : 6-speed
5.
Spare
6.
Final gear ratio
- A : 3.471
- B : 3.833
- C : 3.941
- D : 4.059
- E : 4.188
- F : 4.267
- G : 4.400
- H : 3.706
- J : 3.647
- K : 4.333
- L : 4.467
- M : 4.563
- N : 3.250
- P : 3.048
- R : 3.722
7.
Transaxle production sequence number
- 000001 ~ 999999

    Identification Numbers

    ..

    Warning and Caution Labels

    ..

    Other information:
