Hyundai Elantra: Lighting System / Hazard Lamp Switch

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch

Repair procedures

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the crash pad airvent [RH]. (Refer to Body - "Crash Pad Airvent")

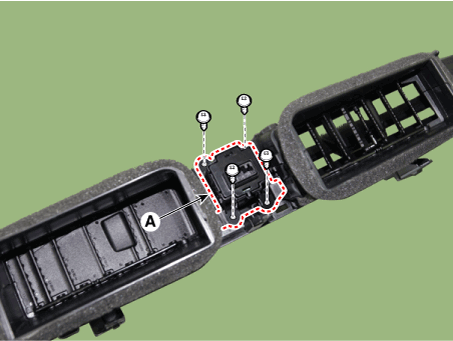

3.	Loosen the mounting screws and remove the harzard lamp switch (A).

Installation

1.	To install, reverse the removal procedure.
