Hyundai Elantra: Lighting System / Overhead Console Lamp

Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.

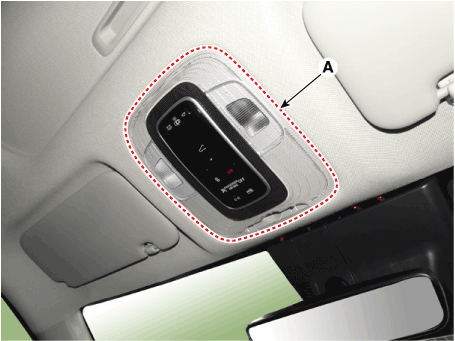

Using a remover and remove the overhead console (A).

3.

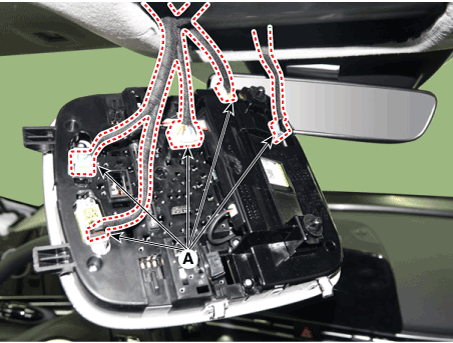

Disconnect the overhead console connectors (A).

Installation
1.
Connect the overhead console connectors and install the overhead console.
2.
Connect the negative (-) battery terminal.
