Hyundai Elantra: Body Side Molding / Rear Spoiler

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Spoiler

Components and components location

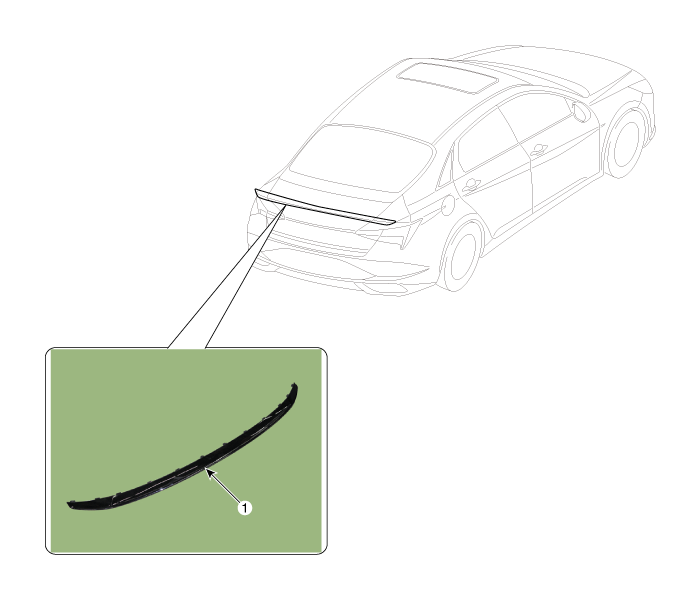

Component Location

1. Rear spoiler

Repair procedures

Replacement

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

1.	Remove the trunk lid back panel. (Refer to Trunk Lid - "Trunk Lid Back Panel")

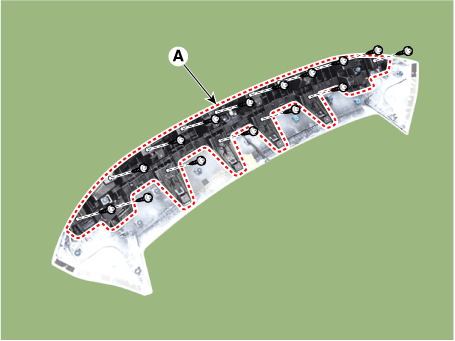

2.	Loosen the mounting screws, remove the trunk lid back panel bracket (A).

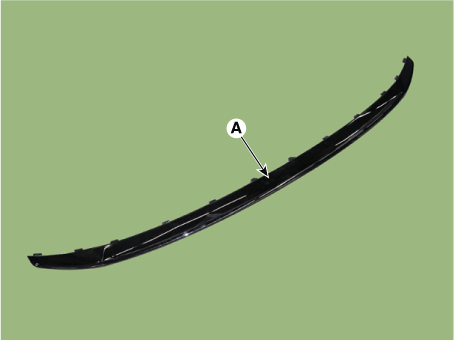

3.	Loosen the mounting screws, remove the rear spoiler (A).

4.	To install, reverse the removal procedure.
