Components and components location

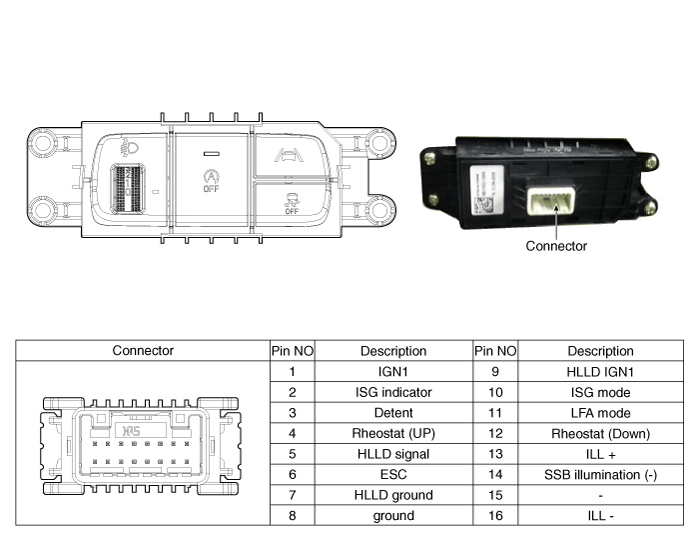

Components

Repair procedures

Replacement

1.	Disconnect the negative (-) battery terminal.

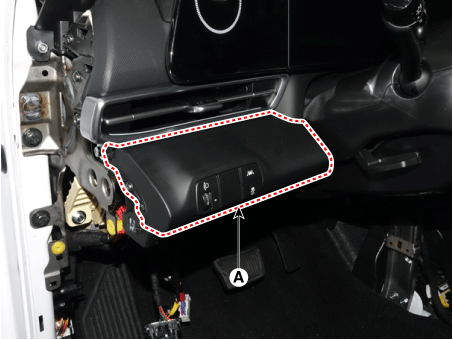

2.	Remove the crash pad lower panel (A). (Refer to Body - "Crash Pad Lower Panel")

3.	Loosen the mounting screw and remove the crash pad lower switch (A).

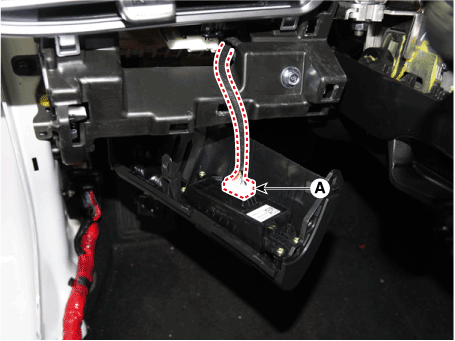

4.	Disconnect the crash pad lower switch connector (A).

5.	To install, reverse the removal procedure.
