Hyundai Elantra: Front Seat Belt / Height Adjust

Hyundai Elantra (CN7) 2021-2024 Service Manual / Body (Interior and Exterior) / Front Seat Belt / Height Adjust

Components and components location

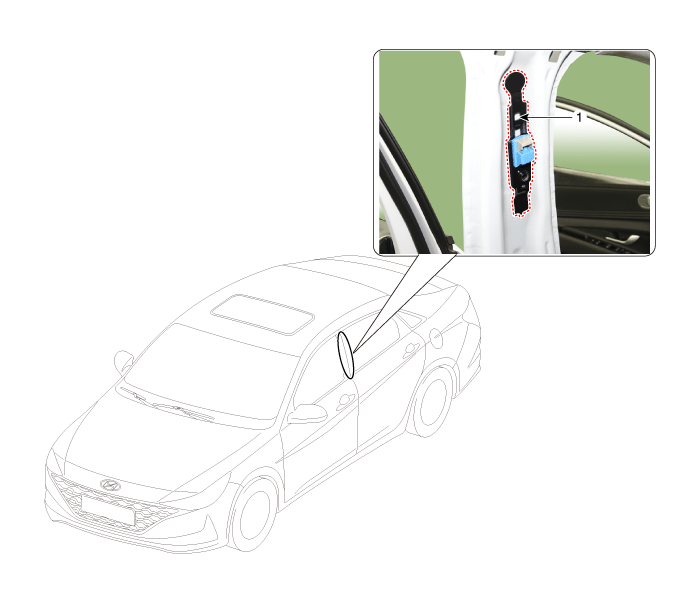

Component Location

1. Height adjust

Repair procedures

Replacement

1.	Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Pretensioner")

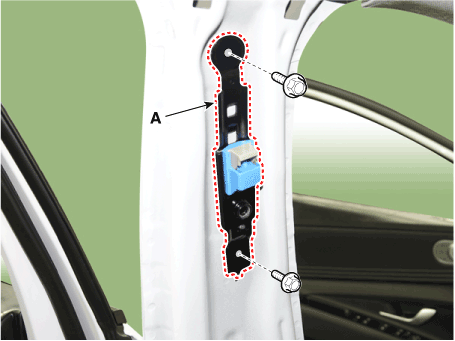

After loosening the mounting bolts, remove the height adjust (A).

Tightening torque :

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
