Hyundai Elantra (CN7): Light Bulbs / License Plate Light Bulb Replacement

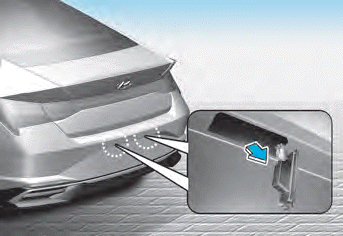

1. Using a flat-blade screwdriver gently pry the lens cover from the lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb.
4. Reinstall in the reverse order.
[A] : High mounted stop lamp 1. Open the trunk. 2. Remove the socket by turning it counterclockwise until the tabs on the socket align with the slots.
1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing. 2. Remove the bulb by pulling it straight out. WARNING Prior to working on the Interior Lights, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.
