Hyundai Elantra: Lubrication System / Oil Pan

Hyundai Elantra (CN7) 2021-2025 Service Manual / Engine Mechanical System / Lubrication System / Oil Pan

Components and components location

Components

1. Oil pan
2. Oil drain plug gasket

3. Oil drain plug

Repair procedures

Removal

1.	Remove the engine room under cover. (Refer to Engine and Transaxle Assembly System - "Engine Room Under Cover")

2.	Drain the engine oil. (Refer to Lubrication System - "Engine Oil")

Using the SST (09215-3C000) and remove the oil pan (A).

•	Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of ① arrow.

•	After tapping the SST with a plastic hammer along the direction of ② arrow around more than 2/3 edge of the oil pan, remove it from the cylinder block.

•	Do not turn over the SST abruptly without tapping. It be result in damage of the SST.

Installation

Install the oil pan.

(1)	Before assembling the oil pan, the surface where the sealant is applied to should be free from the hardened sealant, foreign matters, oil, dust, moisture and etc.

(2)

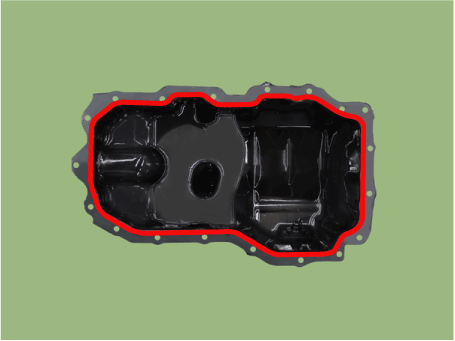

After applying liquid sealant on the oil pan, assemble it within 5 minutes.

Width : Ø 2.5 - 3.5 mm (0.0984 - 0.1378 in.)

Specification : MS721-40AA or AAO or above.

•	When applying sealant gasket, sealant must not be protruded into the inside of oil pan.

•	To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.

•	If the sealant is applied to the bottom surface of the lower crankcase, it should be the same position as the oil pan.

(3)

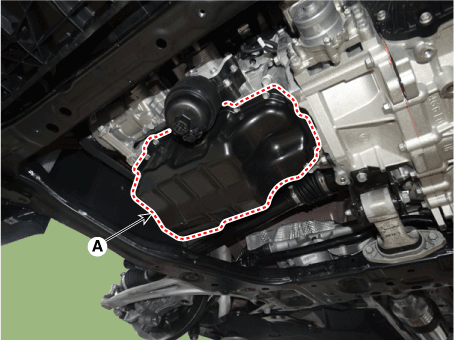

Install the oil pan (A) with the bolts.

Uniformly tighten the bolts in several passes.

Tightening torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

•	After assembly, wait at least 30 minutes before filling the engine with oil.

2.	Refill engine oil. (Refer to Lubrication System - "Engine Oil")
