Hyundai Elantra: Parking Safety / Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
Rear Cross-Traffic Collision-Avoidance Assist is designed to help detect vehicles approaching from the left and right side while your vehicle is reversing, and warn the driver that a collision is imminent with a warning message and an audible warning. Also, braking is assisted to help prevent a collision.
.png)

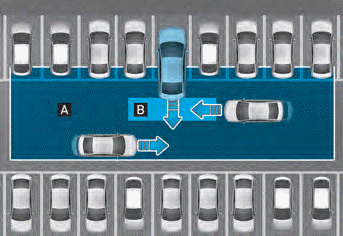

[A] : Rear Cross-Traffic Collision Warning operating range,
[B] : Rear Cross-Traffic Collision-Avoidance Assist operating range
CAUTION
The time of warning may vary depending on vehicle speed of the approaching vehicle.
Information
In the following text, Rear Cross-Traffic Collision Warning and Rear Cross-Traffic Collision-Avoidance Assist will be referred as Rear Cross-Traffic Safety system.
Detecting sensor
.png)

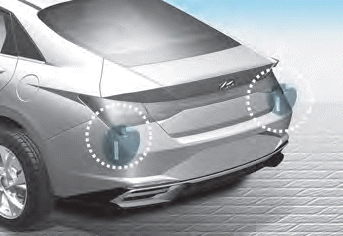

[1] : Rear corner radar
Refer to the picture above for the detailed location of the detecting sensors.
CAUTION
For more details on the precautions of the rear corner radar, refer to “Blind- Spot Collision-Avoidance Assist (BCA)” section in chapter 7.
Function malfunction and
limitations
Function malfunction
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check
Rear Cross-Traffic Safety system(s)’
warning message will appear on the
cluster, and the system will turn off
automatically, or the system will be
limited...
Function settings
Setting
Rear Cross-Traffic Safety
With the engine on, select ‘Driver
Assistance → Parking Safety → Rear Cross-
Traffic Safety’ from the Settings menu to
turn on Rear Cross-Traffic Safety system
and deselect to turn off the system...
