Hyundai Elantra (CN7): Rear Door / Rear Door Belt Inside Weatherstrip

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Inside Weatherstrip

Repair procedures

Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

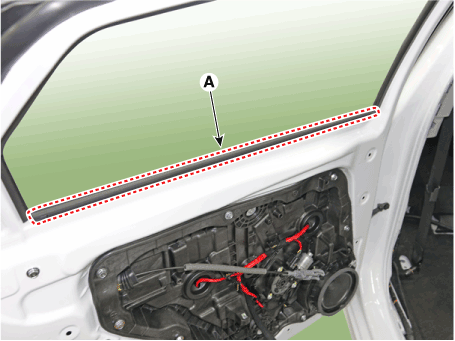

Remove the rear door belt inside weatherstrip (A).

3.
To install, reverse the removal procedure.

•
When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.

    Repair procedures Replacement1.Pull down the rear door window glass to the lowest level by pressing the power window glass switch.2.Remove the rear door belt outside weatherstrip (A).

    Repair procedures Replacement[Rear door side weatherstrip]1.Loosen the rear door checker (B) mounting bolt. Tightening torque : 16.
