Hyundai Elantra (CN7): Rear Door / Rear Door Belt Outside Weatherstrip
Repair procedures
| Replacement |
| 1. | Pull down the rear door window glass to the lowest level by pressing the power window glass switch. |

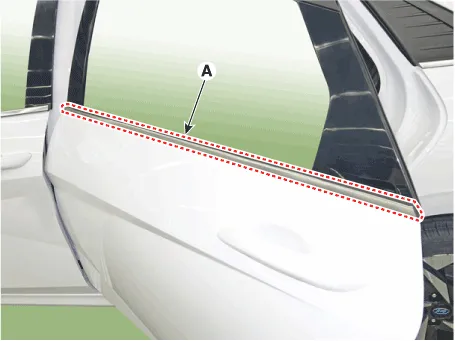

| 2. | Remove the rear door belt outside weatherstrip (A).
|
| 3. | To install, reverse the removal procedure.
|
