Hyundai Elantra: Body Side Molding / Roof Side Molding

Hyundai Elantra (CN7) 2021-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Roof Side Molding

Repair procedures

Replacement

•	When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Put on gloves to prevent hand injuries.

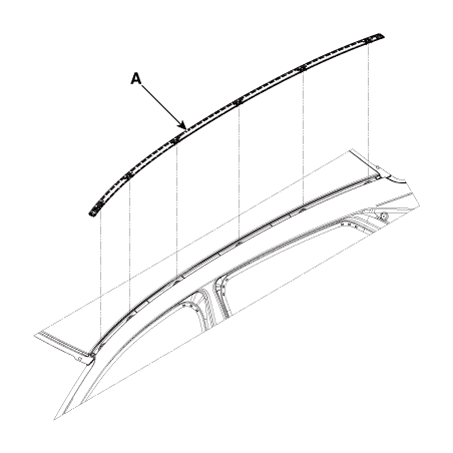

Using a screwdriver or remover, remove the roof side molding (A).

•	Always replace the roof side molding to a new one.

To install, reverse the removal procedure.

•	Replace any damaged clips (or pin - type retainers).
