Components and components location

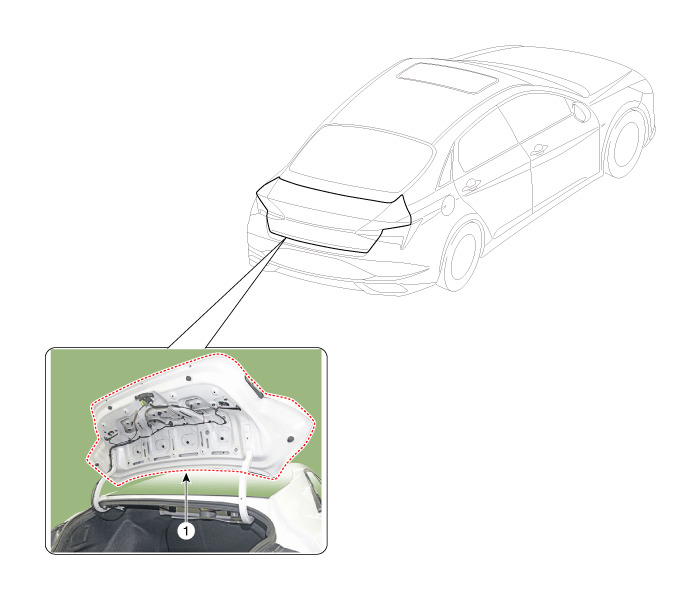

Component Location

1. Trunk lid assembly


Repair procedures
Replacement

•
When removing and installing the trunk lid, an assistant is necessary.

•
Be careful not to damage the trunk lid and body surface.
1.
Remove the trunk lid trim.
(Refer to Trunk Lid - "Trunk Lid Trim")
2.

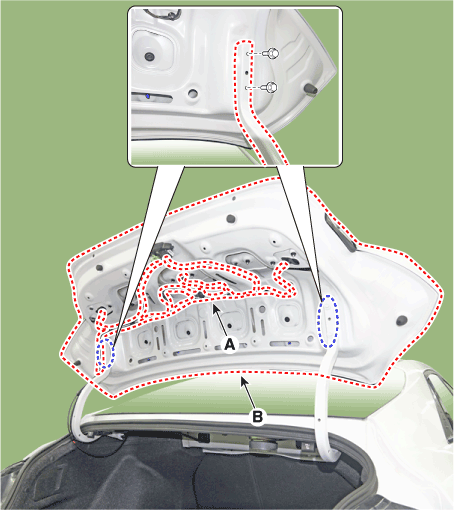

Disconnect the connectors and trunk lid wiring harness (A).
3.
After loosening the mounting bolts, remove the trunk lid assembly (B).
Tightening torque :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.
To install, reverse the removal procedure.

•
Make sure the trunk lid locks / unlocks and opens / closes properly.
•
Adjust the trunk lid as necessary.
•
Make sure the connectors are connected in properly.
•
Replace any damaged clips.

    Repair procedures

    Adjustment1.Place the car on a flat surface and check whether the body and trunk lid are well - aligned.2.After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up and down or from side to side...
