Hyundai Elantra (CN7): Trunk Lid / Trunk Lid Trim

Hyundai Elantra (CN7) 2021-2026 Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Trim

Components and components location

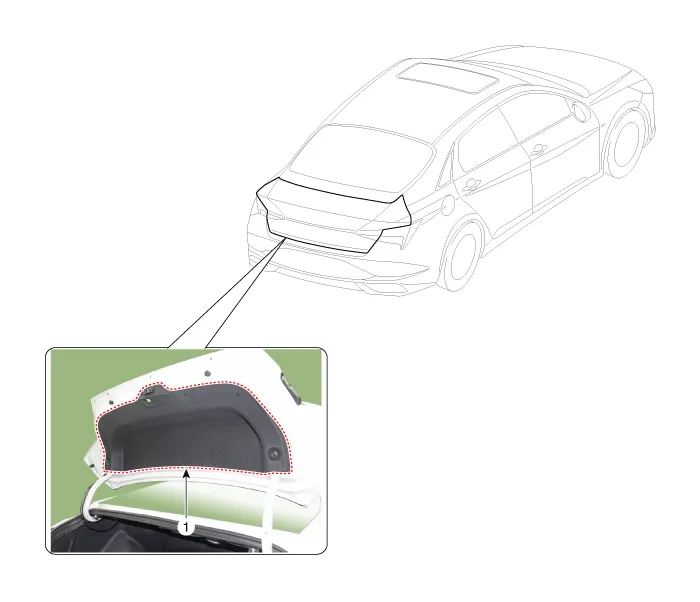

Component Location

1. Trunk lid trim


Repair procedures

Replacement

•
When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.

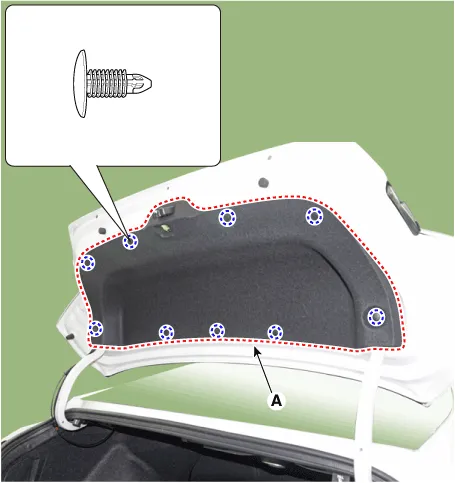

After loosening the mounting screw and clips, then remove the trunk lid trim (A).

2.
To install, reverse the removal procedure.

•
Replace any damaged clips.
